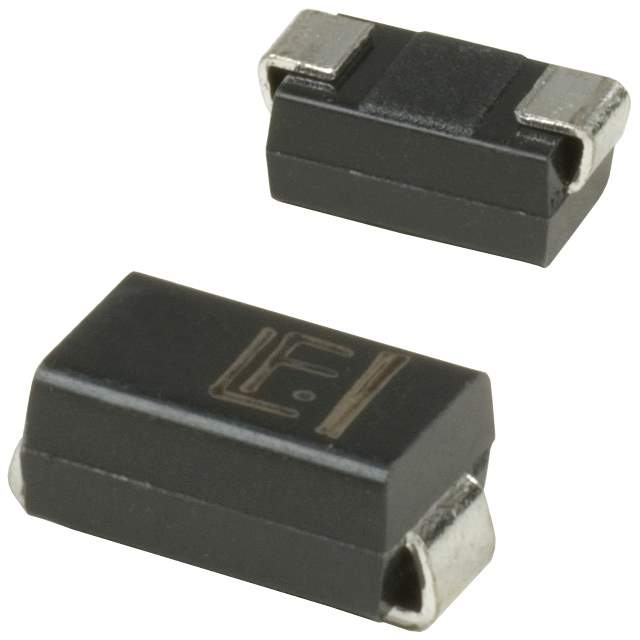

SMAJ20A

Name: SMAJ20A
Brand: Bourns Inc.
SKU: 327555
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SMAJ20A
Manufacturer	Bourns Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 20VWM 32.4VC DO214AC
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Bourns Inc.
Standard Package	1
Category	Circuit Protection
Family	TVS - Diodes
Series	SMAJ
Packaging	Reel
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	20V
Voltage - Breakdown (Min)	22.2V
Voltage - Clamping (Max) @ Ipp	32.4V
Current - Peak Pulse (10/1000µs)	12.3A
Power - Peak Pulse	400W
Power Line Protection	No
Applications	General Purpose
Operating Temperature Range	-55°C ~ 150°C (TJ)
Mounting Style	SMD/SMT
Package	DO-214AC SMA
Manufacturer Device Package	SMA (DO-214AC)
Catalog	SMAJ Series
Win Source Part Number	064784-SMAJ20A
Family Name	SMAJ20A
Introduction Date	February 23, 2010
ECCN	EAR99
Country of Origin	Taiwan
Halogen Free	Compliant
Estimated EOL Date	2024
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Package	Strip
Product Status	Active
Current - Peak Pulse (10/1000µs)	12.35A
Operating Temperature	-55°C ~ 150°C
Grade	-
Mounting Type	Surface Mount
Package / Case	DO-214AC (SMA)
Ultra Librarian 3D Model	Ultra Librarian SMAJ20A CAD Model

Alternative Products

Description

Bourns Inc. presents SMAJ20A, a Zener diode with a voltage reverse standoff of 20V and a voltage breakdown of 22.2V.

Clamping voltage: 32.4V @ Ipp
Peak pulse power: 400W
Current peak pulse: 12.3A
Bidirectional: It is bidirectional
Temperature range: -55°C ~ 150°C
Applications: general-purpose applications
Package: DO-214AC SMA package
Rating: AEC-Q200 rated
