Same model may have multiple batches, images only for reference.

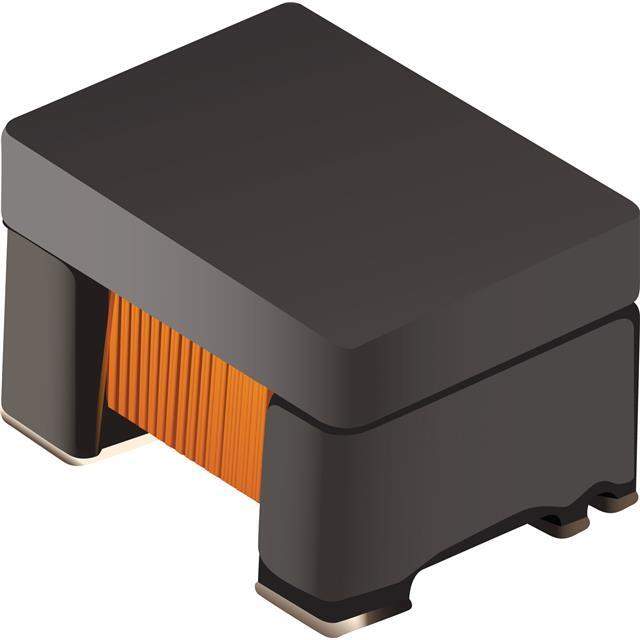

SM453230-121N7YP Real Image
Same model may have multiple batches, images only for reference.

SM453230-121N7YP

Part No SM453230-121N7YP
Manufacturer Bourns Inc.
Catalog Pulse Transformers
Description LAN XFMR,10GBE,POE+,IEEE / 120µH LAN 1/2.5/5/10G Base-T Pulse Transformer 1:1 Surface Mount
Datasheet
SM453230-121N7YP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Bourns Inc.
Series SM
Package Tape & Reel
Transformer Type LAN 1/2.5/5/10G Base-T
Inductance 120µH
Mounting SMD (SMT)
Dimension 0.185" L x 0.127" W (4.70mm x 3.22mm)
Height - Seated (Max) 0.114" (2.90mm)
Temperature Range - Operating -40°C ~ 85°C
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Other Names 118-SM453230-121N7YPCT,118-SM453230-121N7YPDKR,118-SM453230-121N7YPTR
Standard Package 2,000
Win Source Part Number 984698-SM453230-121N7YP
Ultra Librarian 3D Model Ultra Librarian SM453230-121N7YP CAD Model

Description

The SM453230-121N7YP is a pulse transformer designed for LAN 1/2.5/5/10G Base-T.

  • Application: LAN 1/2.5/5/10G Base-T
  • Inductance: 120μH
  • Height-Seated (Max): 0.114 inches (2.90mm)
  • Package: Tape and Reel
  • Mounting: SMD (SMT)
  • Standard Package: 2,000
  • Temperature Range: -40°C to 85°C
  • Series: SM
  • Win Source Part Number: 984698
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8504.31.2000
