Same model may have multiple batches, images only for reference.

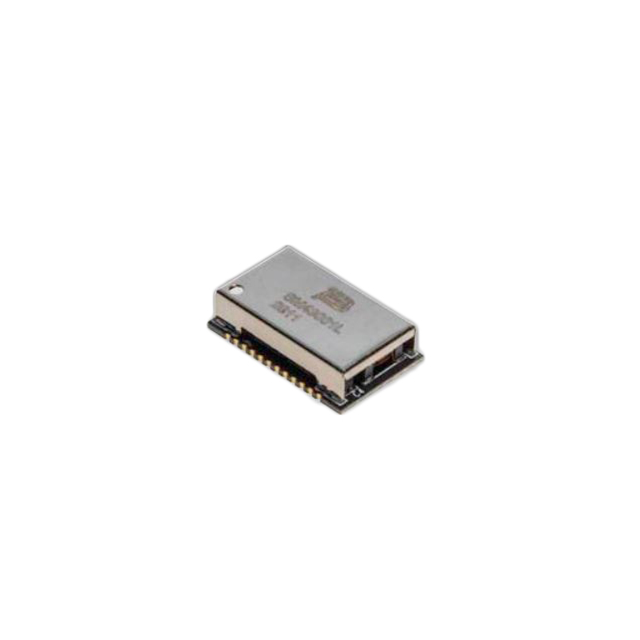

SM43001EL Real Image
Same model may have multiple batches, images only for reference.

SM43001EL

Part No SM43001EL
Manufacturer Bourns Inc.
Catalog Pulse Transformers
Description LAN TRANSFORMER / 120µH LAN 10G Base-T Pulse Transformer Surface Mount
Datasheet
SM43001EL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Bourns Inc.
Series SM
Package Tape & Reel
Transformer Type LAN 10G Base-T
Inductance 120µH
Mounting SMD (SMT)
Dimension 0.650" L x 0.406" W (16.50mm x 10.30mm)
Height - Seated (Max) 0.161" (4.10mm)
Temperature Range - Operating 0°C ~ 85°C
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Other Names 118-SM43001ELTR,118-SM43001ELDKR,118-SM43001ELCT
Standard Package 800
Win Source Part Number 1196429-SM43001EL
Ultra Librarian 3D Model Ultra Librarian SM43001EL CAD Model

Description

The SM43001EL from Bourns Inc. is a pulse transformer.

  • Type: LAN 10G Base-T
  • Series: SM
  • Inductance: 120µH
  • Height Seated: 0.161" (4.10mm)
  • Package/Case: Tape & Reel
  • Mounting Type: SMD (SMT)
  • Operating Temperature: 0°C ~ 85°C
  • Dimension: 0.650" L x 0.406" W (16.50mm x 10.30mm)
