Same model may have multiple batches, images only for reference.

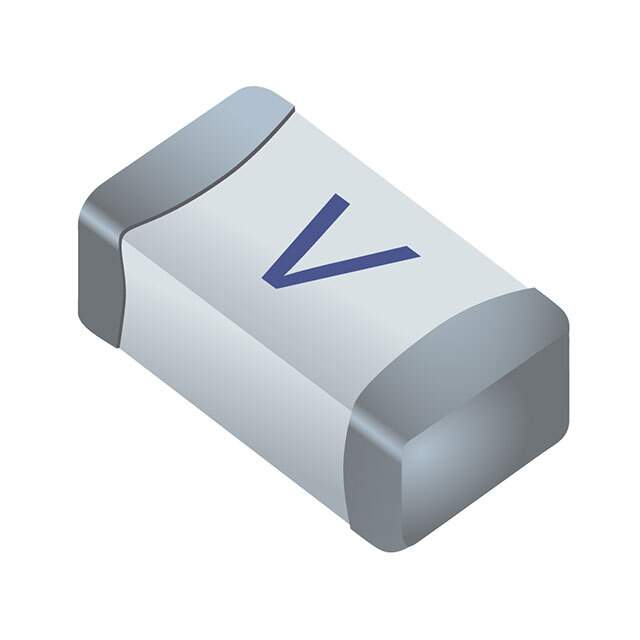

SF-1206HV20M-2 Real Image
Same model may have multiple batches, images only for reference.

SF-1206HV20M-2

Part No SF-1206HV20M-2
Manufacturer Bourns Inc.
Catalog Fuses
Description FUSE BOARD MOUNT 20A 35VDC 1206 / 20 A AC 35 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 1206 (3216 Metric)
Datasheet
SF-1206HV20M-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bourns Inc.
Series SinglFuse™ SF-1206HVxxM
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 20 A
Voltage Rating - DC 35 V
Response Time Slow Blow
Package / Case 1206 (3216 Metric)
Breaking Capacity @ Rated Voltage 150A
Melting I2t 80
Approval Agency UL
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.126" L x 0.063" W x 0.038" H (3.20mm x 1.60mm x 0.97mm)
DC Cold Resistance 0.0023 Ohms
Base Product Number SF-1206
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Other Names SF-1206HV20M-2TR,SF-1206HV20M-2CT,SF-1206HV20M-2DKR
Standard Package 3,000
Win Source Part Number 988661-SF-1206HV20M-2
Ultra Librarian 3D Model Ultra Librarian SF-1206HV20M-2 CAD Model

Description

The SF-1206HV20M-2 is a SinglFuse™ SF-1206HVxxM series board mount fuse manufactured by Bourns Inc.

  • Current Rating: 20A
  • Voltage Rating: 35V
  • Response Time: Slow Blow
  • Breaking Capacity: 150A @ Rated Voltage
  • Melting I2t: 80
  • DC Cold Resistance: 0.0023 Ohms
  • Package: 1206 (3216 Metric)
  • Standard Package: 3000
  • REACH: Unaffected
  • HTSUS: 8536.10.0040
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • Other Names: SF-1206HV20M-2TR, SF-1206HV20M-2CT, SF-1206HV20M-2DKR
