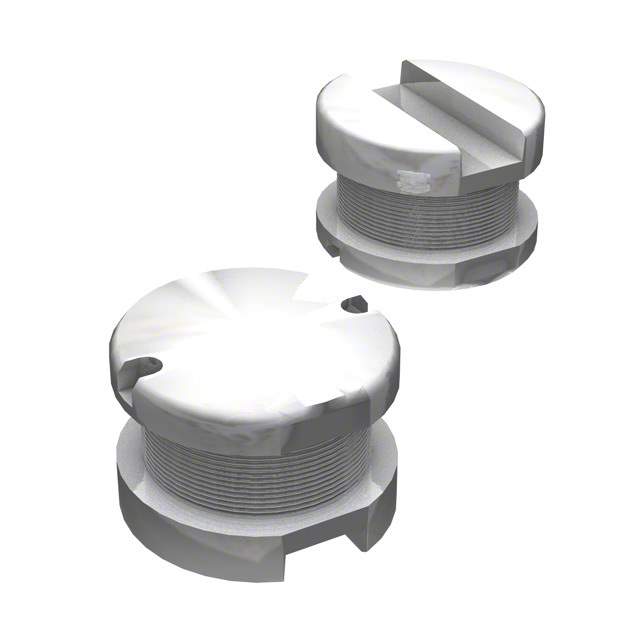

SDR0603-470KL Real Image
Same model may have multiple batches, images only for reference.

SDR0603-470KL

Part No SDR0603-470KL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 47UH 520MA 550 MOHM / Inductor Power Wirewound 47uH 10% 1KHz 20Q-Factor Ferrite 0.52A 0.55Ohm DCR Automotive T/R
Datasheet
SDR0603-470KL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Bourns Inc.
Series SDR0603
Packaging Reel package
Type Wirewound
Material - Core Ferrite
Inductance 47μH
Tolerance ±10%
Current Rating 520mA
Current - Saturation 620mA
Shielding Unshielded
DC Resistance (DCR) 550 mOhm Max
Q @ Freq 20 @ 2.52MHz
Frequency - Self Resonant 13MHz
Operating Temperature Range -40°C ~ 125°C
Test Frequency 1kHz
Mounting SMD
Package Nonstandard
Dimension 0.228" L x 0.228" W (5.80mm x 5.80mm)
Height - Seated (Maximum) 0.154" (3.90mm)
Win Source Part Number 794051-SDR0603-470KL
Popularity Medium
Supply and Demand Status Limited
Family Name SDR0603
Introduction Date October 23, 2001
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian SDR0603-470KL CAD Model

Description

The Bourns Inc. SDR0603 series inductor is a non-shielded wirewound type component.

  • Temperature Range: -40°C to 125°C
  • Tolerance: ±10%
  • Inductance: 47μH
  • DC Resistance: 550 mOhm Max
  • Core Material: Ferrite
  • Current Rating: 520mA
  • Saturation Current: 620mA
  • Q @ Freq: 20 @ 2.52MHz
  • Frequency: 13MHz
  • Mounting: SMD
  • Package: Reel
  • Dimension: 0.228" L x 0.228" W (5.80mm x 5.80mm)
  • Height: 0.154" (3.90mm)
