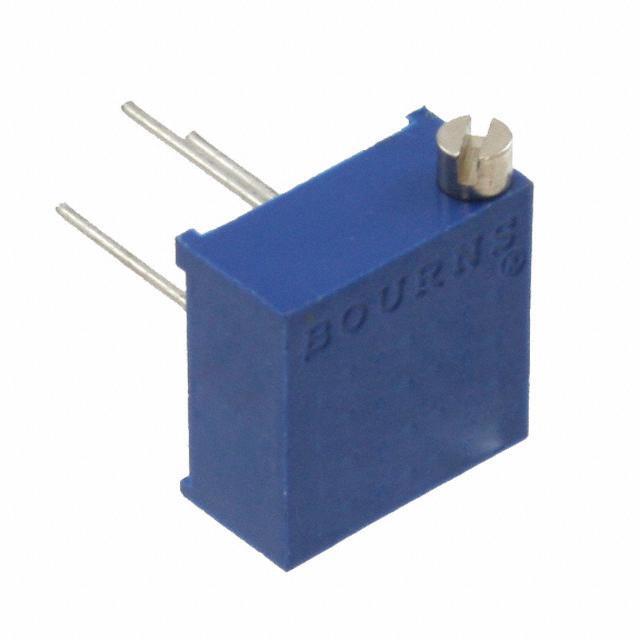

Same model may have multiple batches, images only for reference.
RJ24FW500 Bourns Inc.
Same model may have multiple batches, images only for reference.

RJ24FW500

Part No RJ24FW500
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 50 OHM 0.5W PC PIN / Res Cermet Trimmer 50 Ohm 10% 0.5W(1/2W) 25(Elec)Turns 2.19mm (9.53 X 4.83 X 11.55mm) Pin Thru-Hole Tube
Datasheet
RJ24FW500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Series Trimpot RJ24/RJR24-Sealed
Packaging Tube
Resistance (Ohms) 50
Power (Watts) 0.5W, 1/2W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 25
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Chassis Mount
Termination Style PC Pins
Dimension Rectangular - 0.375" x 0.190" Face x 0.395" H (9.53mm x 4.83mm x 10.03mm)
Win Source Part Number 793199-RJ24FW500
Popularity Medium
Supply and Demand Status Limited
Family Name RJ24
Introduction Date May 14, 1999
ECCN EAR99
Country of Origin Costa Rica
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian RJ24FW500 CAD Model

Description

The Bourns Inc. Trimpot RJ24/RJR24-Sealed series potentiometer is a high-quality component that comes with a resistance of 50 ohms and a tolerance of ±10%.

  • Resistance: 50 ohms
  • Tolerance: ±10%
  • Temperature Coefficient: ±100ppm/°C
  • Power Rating: 0.5W or 1/2W
  • Turns: 25
  • Resistive Material: Cermet
  • Adjustment Type: Top adjustment
  • Termination Style: PC pins
  • Mounting: Chassis mountable
  • Shape: Rectangular (0.375" x 0.190" face x 0.395" H (9.53mm x 4.83mm x 10.03mm))
  • Family: RJ24
  • Country of Origin: Costa Rica
  • ECCN: EAR99
  • Estimated EOL Date: 2028
