Same model may have multiple batches, images only for reference.

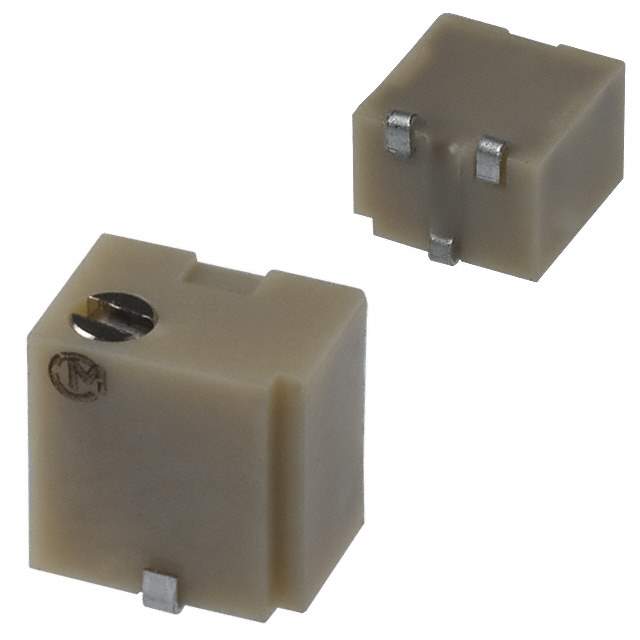

PVG5A103A01R00 Real Image
Same model may have multiple batches, images only for reference.

PVG5A103A01R00

Part No PVG5A103A01R00
Manufacturer Bourns Inc.
Catalog HOT - SALES and EOL Components
Description TRIMMER 10K OHM 0.25W J LEAD TOP
Datasheet
PVG5A103A01R00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Packaging Cut Tape (CT)
Status Obsolete
Resistance 10 kOhms
Power (W) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 11
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Style SMD
Termination Style J Lead
Parts Dimension Rectangular - 0.189" x 0.138" Face x 0.201" H (4.80mm x 3.50mm x 5.10mm)
Family Part Number PVG5A
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 062213-PVG5A103A01R00
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PVG5A103A01R00 CAD Model

Description

The Bourns Inc. 062213-PVG5A103A01R00 is a variable resistor or potentiometer that comes in a rectangular shape measuring 0.189" x 0.138" face x 0.201" H (4.80mm x 3.50mm x 5.10mm).

  • Mounted: SMD technology
  • Tolerance: ±10%
  • Temperature Coefficient: ±100ppm/°C
  • Turns: 11
  • Adjusted: From the top
  • Resistance: 10k ohms
  • Resistive Material: Cermet
  • Category: Potentiometers and variable resistors
  • Status: Obsolete
  • Supply and Demand Status: Balanced
  • Manufacturer Pack Quantity: One
  • Power: 0.25W or 1/4W
