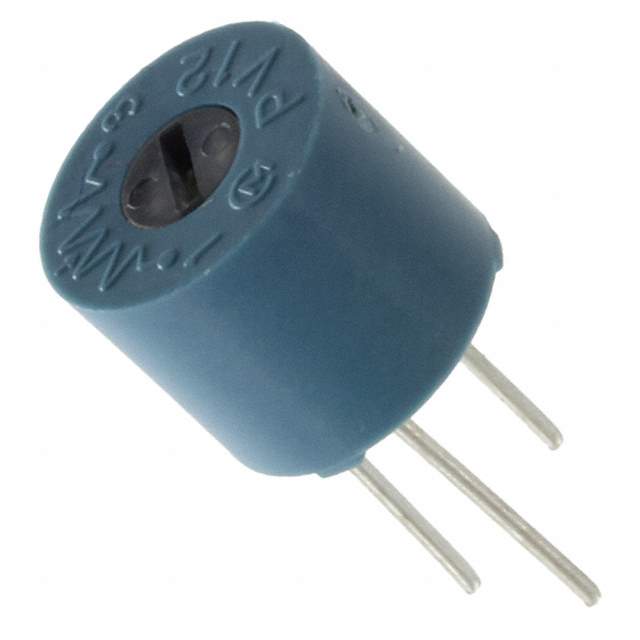

PV12P103A01B00 Real Image
Same model may have multiple batches, images only for reference.

PV12P103A01B00

Part No PV12P103A01B00
Manufacturer Bourns Inc.
Catalog HOT - SALES and EOL Components
Description available for ultrasonic cleaning after soldering | TRIMMER 10K OHM 0.5W PC PIN TOP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Packaging Bulk
Resistance 10 kOhms
Power (W) 0.5W, 1/2W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 4
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Style Through Hole
Termination Style PC Pins
Parts Dimension Round - 0.299" Dia x 0.260" H (7.60mm x 6.60mm)
Family Part Number PV12P
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Win Source Part Number 284380-PV12P103A01B00
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PV12P103A01B00 CAD Model

Description

The Bourns Inc. The supply and demand status for this component is limited.

  • Manufacturer: Bourns Inc.
  • Designed to: deliver optimal performance and has been tested for quality assurance.
  • Component: potentiometer with a resistance of 10 kOhms
  • Recommended for: use in electronic devices that require high performance and reliability.
