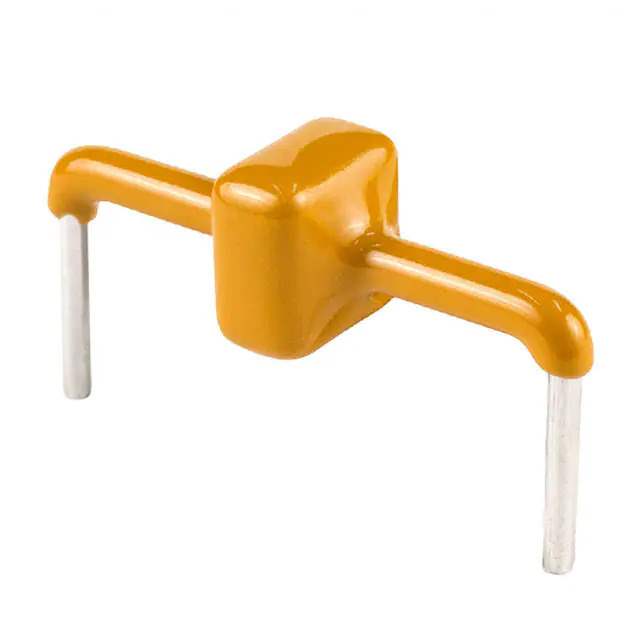

Same model may have multiple batches, images only for reference.

PTVS3-058C-TH

Name: PTVS3-058C-TH
Brand: Bourns Inc.
SKU: 658051
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PTVS3-058C-TH
Manufacturer	Bourns Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 58VWM 110VC AXIAL
Datasheet	PTVS3-058C-TH Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	Bourns Inc.
Series	PTVS
Package	Tray
Product Status	Active
Type	Zener
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	58V (Max)
Voltage - Breakdown (Min)	64V
Voltage - Clamping (Max) @ Ipp	110V
Current - Peak Pulse (10/1000µs)	3000A (3kA) (8/20µs)
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	2300pF @ 10kHz
Temperature Range - Operating	-55°C ~ 125°C (TJ)
Mounting Type	Through Hole
Package / Case	Axial, Right Angle Bend (24.15mm Center)
Supplier Device Package	Axial
Base Product Number	PTVS3
Standard Package	50 pcs
MSL Level	Not Applicable
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8541.10.0080
California Prop 65	Warning Information
Win Source Part Number	658051-PTVS3-058C-TH
Ultra Librarian 3D Model	Ultra Librarian PTVS3-058C-TH CAD Model

Alternative Products

Description

The PTVS3-058C-TH is a Zener type transient voltage suppressor diode from Bourns Inc..

Application: General Purpose
Reverse Standoff Voltage: 58V
Breakdown Voltage: 64V
Clamping Voltage @ Peak Pulse Current: 110V
Peak Pulse Current: 3kA
Package: Axial, Right Angle Bend
Mounting Type: Through Hole
Operating Temperature: -55°C to 125°C
Series: PTVS
Status: Active
Standard Package: 50 pieces
