Same model may have multiple batches, images only for reference.

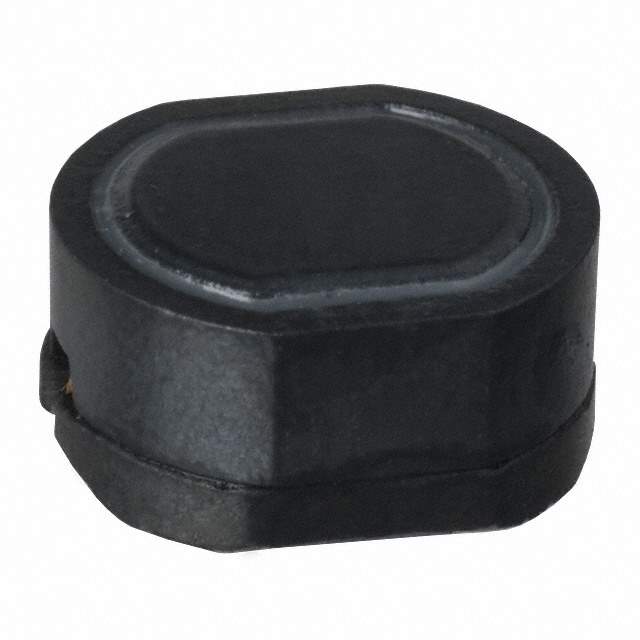

PM105SB-330L-RC Real Image
Same model may have multiple batches, images only for reference.

PM105SB-330L-RC

Part No PM105SB-330L-RC
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description Shielded SMD Power Inductor
Datasheet
PM105SB-330L-RC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Bourns Inc.
Series PM105SB
Packaging Reel - TR
Type Wirewound
Material - Core Ferrite
Inductance 33μH
Tolerance ±15%
Current Rating 1.2A
Shielding Shielded
DC Resistance (DCR) 110 mOhm Max
Q @ Freq 27 @ 2.52MHz
Frequency - Self Resonant 14MHz
Operating Temperature Range -40°C ~ 125°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Size 0.390" L x 0.390" W (9.90mm x 9.90mm)
Height - Seated (Maximum) 0.189" (4.80mm)
Win Source Part Number 1238760-PM105SB-330L-RC
Manufacturer Homepage www.bourns.com
Popularity Medium
Supply and Demand Status Balance
Family Name PM105SB
Introduction Date June 05, 2002
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian PM105SB-330L-RC CAD Model

Description

The Bourns Inc. PM105SB-330L-RC is a wirewound shielded inductor with a ferrite core.

  • Current Rating: 1.2A
  • Inductance: 33μH
  • Tolerance: ±15%
  • Operating Temperature Range: -40°C to 125°C
  • Size: 0.390" L x 0.390" W (9.90mm x 9.90mm)
  • DC Resistance (DCR): 110 mOhm Max
  • Applications: Power Supplies, DC-DC Converters, EMI Filtering
  • Mounting: SMD
