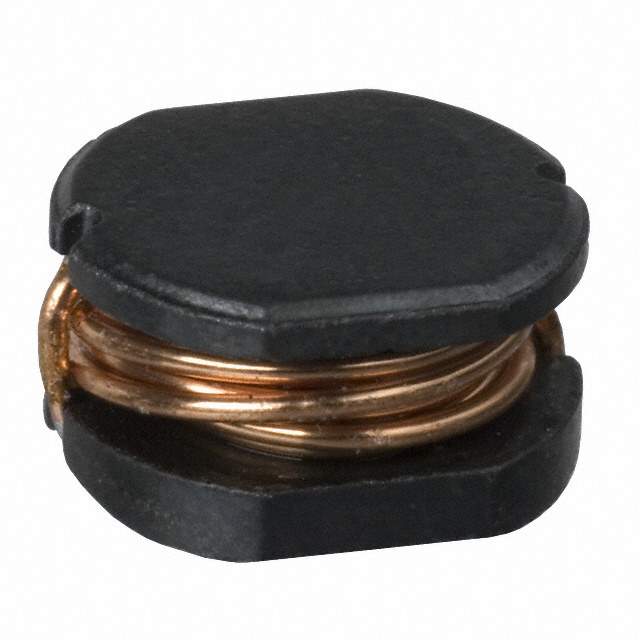

The PM105-560K-RC is a power inductor manufactured by Bourns, Inc. It is designed for use in power supply and filtering applications requiring high inductance and current handling capabilities.

Applications:

• DC-DC converters
• Power supplies
• EMI filtering
• Buck, boost, and flyback converters
• Voltage regulators
• LED lighting

Features:

• Inductance: 56 µH
• Tolerance: ±10%
• Saturation Current: 1.8 A
• DC Resistance (DCR): 0.165 Ω (typical)
• Shielded Construction: Yes
• Operating Temperature: -40°C to +125°C
• Package: 10.5 x 10.0 x 5.0 mm
• RoHS compliant

Benefits:

• High Inductance Value: Provides effective energy storage and filtering capabilities.
• High Saturation Current: Allows for high current handling without significant inductance drop.
• Low DC Resistance: Minimizes power losses and improves efficiency.
• Shielded Construction: Reduces EMI emissions, ensuring compatibility with sensitive electronic circuits.
• Compact Size: Facilitates integration into space-constrained applications.
• Wide Operating Temperature Range: Suitable for use in harsh environments.

Additional Details:

The PM105-560K-RC power inductor is constructed with a shielded ferrite core, which provides excellent EMI performance. The shielded construction minimizes electromagnetic interference, making it suitable for applications where low noise is critical. It is designed for surface mount assembly and offers a robust construction for reliable performance. The inductor is designed to handle high ripple currents, ensuring stable operation in demanding power supply circuits. Its compact size enables its use in portable devices and other applications where space is limited.
