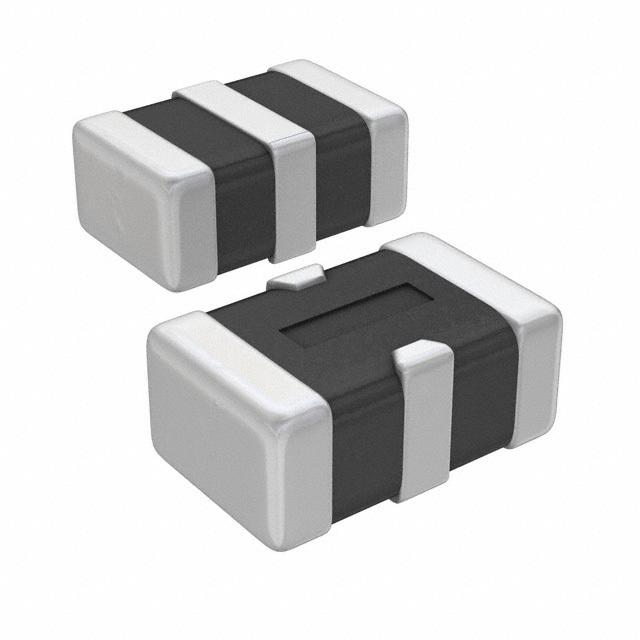

Same model may have multiple batches, images only for reference.
MEM2012P10R0 TDK Corporation
Same model may have multiple batches, images only for reference.

MEM2012P10R0

Part No MEM2012P10R0
Manufacturer TDK Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(PI) 10MHZ SMD / LC (Pi) EMI Filter 3rd Order Low Pass 1 Channel 200 mA 0805 (2012 Metric), 3 PC Pad
Datasheet
MEM2012P10R0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - EMI/RFI Filters (LC, RC Networks)
Mfr TDK Corporation
Series MEM
Package Tape & Reel
Product Status Obsolete
Type Low Pass
Filter Order 3rd
Technology LC (Pi)
Number of Channels 1
Center / Cutoff Frequency 10MHz (Cutoff)
Attenuation Value 20dB @ 200MHz ~ 2GHz
Current 200 mA
ESD Protection No
Temperature Range - Operating -40°C ~ 85°C
Applications Data Lines for Mobile Devices
Voltage - Rated 12V
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric), 3 PC Pad
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height 0.030" (0.76mm)
Standard Package 4,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 227958-MEM2012P10R0
Ultra Librarian 3D Model Ultra Librarian MEM2012P10R0 CAD Model

Description

The MEM2012P10R0 is a low pass EMI/RFI filter from TDK Corporation.

  • Series: MEM series
  • Design: designed for data lines in mobile devices
  • Rated Voltage: 12V
  • Current Rating: 200 mA
  • Cutoff Frequency: 10MHz
  • Attenuation Value: 20dB from 200MHz to 2GHz
  • Technology: LC (Pi) technology
  • Size: 0.079" L x 0.049" W (2.00mm x 1.25mm)
  • Mounting: Surface mountable
  • Package: tape & reel package
  • Operating Temperature Range: -40°C to 85°C
  • REACH Regulations: unaffected
  • ECCN: EAR99
