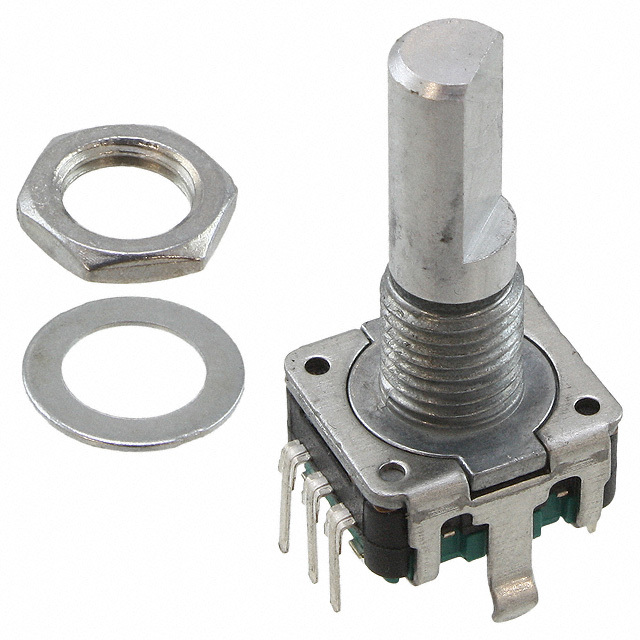

PEC16-4020F-N0024 Bourns Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

PEC16-4020F-N0024

Part No PEC16-4020F-N0024
Manufacturer Bourns Inc.
Catalog Encoders
Description ENCODER MECH QUAD VERT PC PIN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Programmable Not Verified
Encoder Type Mechanical
Output Type Quadrature (Incremental)
Pulses per Revolution 24
Actuator Type 6mm Dia Flatted End
Detent No
Built in Switch No
Mounting Type Panel, PCB Through Hole
Orientation Vertical
Termination Style PC Pin
Rotational Life (Cycles Min) 100K
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1548112-PEC16-4020F-N0024
Ultra Librarian 3D Model Ultra Librarian PEC16-4020F-N0024 CAD Model

Description

N
