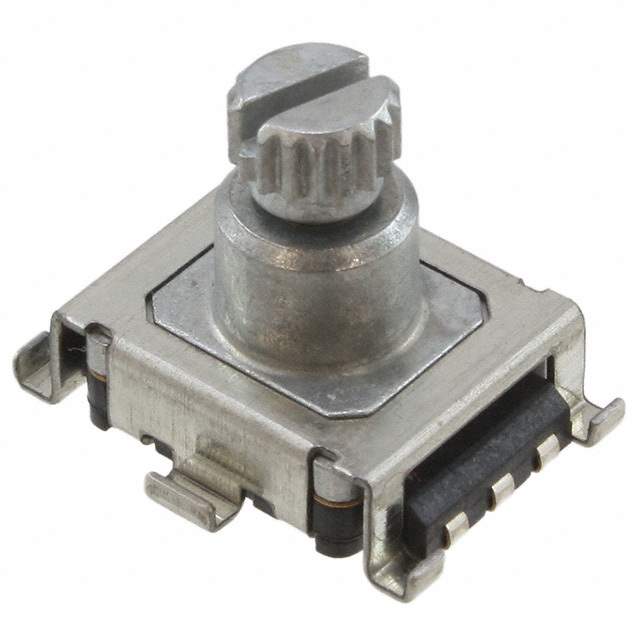

The PEC11S-9213K-S0015 is a compact incremental rotary encoder manufactured by Bourns Inc. It is designed for use in a variety of applications requiring precise rotational input and feedback. Its robust construction and reliable performance make it suitable for both consumer and industrial applications.

Applications:

• Consumer electronics: Volume control in audio equipment, menu navigation in appliances.
• Automotive: Control knobs in vehicle infotainment systems, dashboard controls.
• Industrial controls: Position feedback in machinery, human-machine interfaces.
• Medical equipment: Adjustment knobs on diagnostic and therapeutic devices.

Features:

• Compact size: Space-saving design for integration into small devices.
• Incremental output: Provides quadrature signals for direction and position sensing.
• Detent options: Available with or without detents for tactile feedback.
• Long rotational life: Designed for high reliability and durability.
• Various shaft and bushing options: Customizable to fit different mounting requirements.

Benefits:

• Precise control: Accurate rotational input for fine adjustments.
• Reliable operation: Consistent performance over a long lifespan.
• Easy integration: Simple interface for connecting to microcontroller-based systems.
• Versatile applications: Suitable for a wide range of control and feedback applications.
• Cost-effective: Provides excellent value for performance and reliability.

Additional Details:

This encoder features a 11mm square body. It offers a 9mm shaft length and provides 20 pulses per revolution (PPR). The S0015 suffix indicates a specific shaft and detent configuration. It is RoHS compliant. The encoder operates within a specified temperature range and is designed to withstand mechanical shock and vibration. Detailed specifications, including electrical characteristics, mechanical dimensions, and environmental ratings, are available in the Bourns datasheet.
