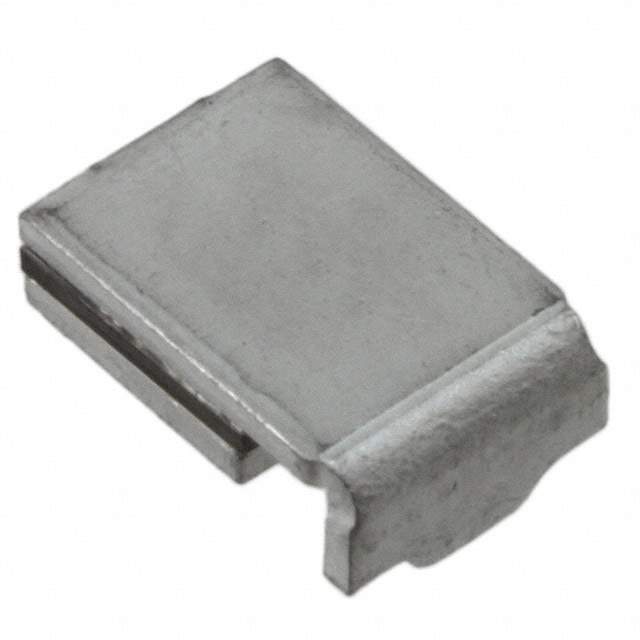

MF-SM050-2-99 Real Image
Same model may have multiple batches, images only for reference.

MF-SM050-2-99

Part No MF-SM050-2-99
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description FUSE RESETTABLE
Datasheet
MF-SM050-2-99 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 60V
Current - Max 40A
Current - Hold (Ih) (Max) 500mA
Current - Trip (It) 1A
Time to Trip 4s
Resistance - Initial (Ri) (Min) 350 mOhm
Resistance - Post Trip (R1) (Max) 1.4 Ohm
Temperature Range - Operating -40°C to 85°C
Ratings AEC-Q200
Mounting SMD (SMT)
Dimension 0.287" L x 0.214" W (7.31mm x 5.44mm)
Thickness (Max) 0.125" (3.18mm)
Approvals cURus, TUV
Win Source Part Number 003436-MF-SM050-2-99
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MF-SM050-2-99 CAD Model

Description

The Bourns Inc. 003436-MF-SM050-2-99 is a polymeric type circuit protection component with a maximum voltage of 60V and maximum current of 40A.

  • Maximum Voltage: 60V
  • Maximum Current: 40A
  • Thickness: 0.125" (3.18mm)
  • Mounting: surface mount technology (SMT)
  • Approvals: cURus and TUV approved
  • Ratings: AEC-Q200 ratings
  • Current Hold (Ih): 500mA
  • Current Trip (It): 1A
  • Time to Trip: 4s
  • Initial Resistance (Ri): 350 mOhm
  • Post-Trip Resistance (R1): 1.4 Ohm
  • Operating Temperature Range: -40°C to 85°C
  • Dimension: 0.287" L x 0.214" W (7.31mm x 5.44mm)
  • Description: suitable for use in various electronic devices.
