Same model may have multiple batches, images only for reference.

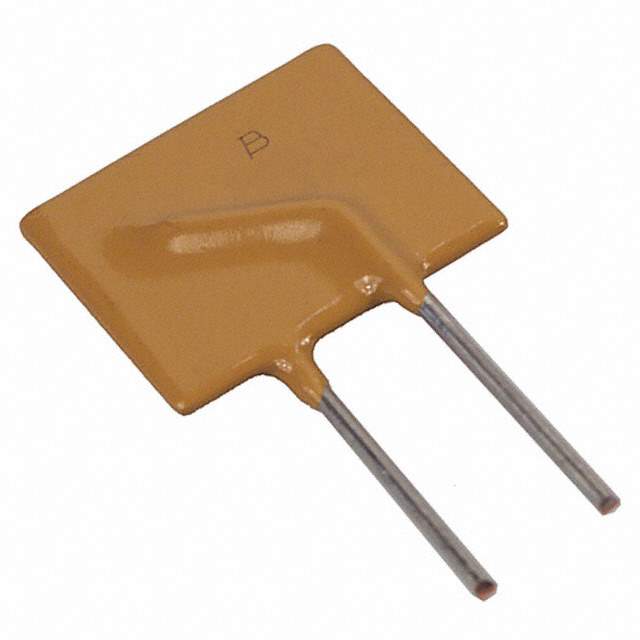

MF-R900 Real Image
Same model may have multiple batches, images only for reference.

MF-R900

Part No MF-R900
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description FUSE PTC RESETTABLE 9A HOLD
Datasheet
MF-R900 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Bulk
Status Active
Type Polymeric
Voltage - Max 30V
Current - Max 40A
Current - Hold (Ih) (Max) 9A
Current - Trip (It) 18A
Time to Trip 20s
Resistance - Initial (Ri) (Min) 5 mOhm
Resistance - Post Trip (R1) (Max) 20 mOhm
Temperature Range - Operating -40°C to 85°C
Mounting Through Hole
Dimension 0.953" L x 0.118" W (24.20mm x 3.00mm)
Height - Seated (Max) 1.295" (32.90mm)
Lead Spacing 0.402" (10.20mm)
Approvals cURus, TUV
Win Source Part Number 003427-MF-R900
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MF-R900 CAD Model

Description

The Bourns MF-R900 series resettable fuses are designed for circuit protection in a variety of applications.

  • Voltage Rating: 30V
  • Current Rating: 40A
  • Hold Current: 9A
  • Trip Current: 18A
  • Time to Trip: 20s
  • Mounting: Through-hole
  • Lead Spacing: 0.402"
  • Initial Resistance: 5 mOhm
  • Post-Trip Resistance: 20 mOhm
  • Operating Temperature Range: -40°C to 85°C
  • Ideal for: Circuits that require protection from overcurrent events
