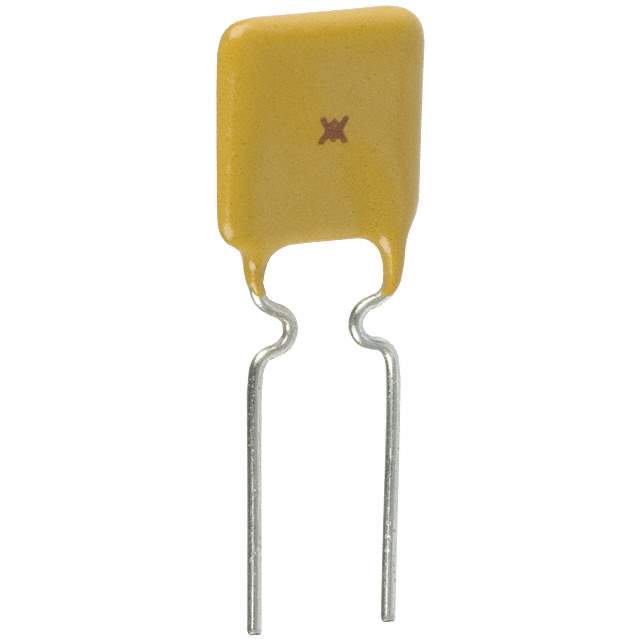

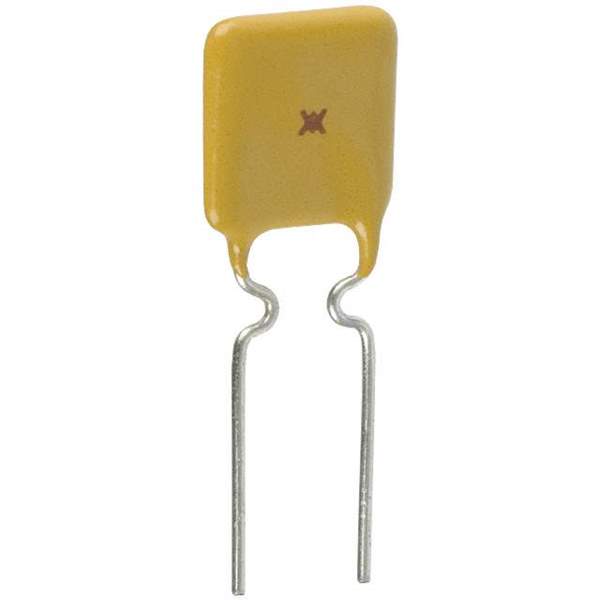

Same model may have multiple batches, images only for reference.

RUSBF185-AP

Name: RUSBF185-AP
Brand: Littelfuse Inc.
SKU: 1089420
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	RUSBF185-AP
Manufacturer	Littelfuse Inc.
Catalog	PTC Resettable Fuses
Description	PTC RESET FUSE 16V 1.85A RADIAL / Polymeric PTC Resettable Fuse 16V 1.85 A Ih Through Hole Radial, Disc
Datasheet	RUSBF185-AP Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Approval Agency	CSA, TUV, UL
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8533.40.8070
Other Names	RUSBF185-APHFTB,RF3397-000,-RUSBF185-APHFTB,RUSBF185-AP-ND,-RUSBF185-AP-ND,RF0979-000-ND,RF0979-000,RUSBF185-APHF-ND,-RUSBF185-AP,RUSBF185-APHF,RUSBF185-APTB,RUSBF185-APHFCT
Standard Package	2,000
Win Source Part Number	1089420-RUSBF185-AP
Lead Spacing	0.199" (5.05mm)
Height - Seated (Max)	0.618" (15.70mm)
Dimension	0.402" L x 0.118" W (10.20mm x 3.00mm)
Package / Case	Radial, Disc
Mounting Type	Through Hole
Temperature Range - Operating	-40°C ~ 85°C
Resistance - Post Trip (R1) (Max)	90 mOhms
Resistance - Initial (Ri) (Min)	30 mOhms
Time to Trip	10 s
Current - Trip (It)	3.7 A
Current - Hold (Ih) (Max)	1.85 A
Current - Max	40 A
Voltage - Max	16V
Type	Polymeric
Package	Cut Tape (CT),Tape & Box (TB)
Series	PolySwitch®, RUSBF
Mfr	Littelfuse Inc.
Category	Circuit Protection>PTC Resettable Fuses
Ultra Librarian 3D Model	Ultra Librarian RUSBF185-AP CAD Model

Alternative Products

Description

The PolySwitch® RUSBF series PTC resettable fuse is a polymeric type circuit protection component designed for use in electronic devices.

Packaging: Cut Tape (CT), Tape & Box (TB)
Maximum Voltage: 16V
Maximum Current: 40A
Current Hold (Ih): 1.85A
Current Trip (It): 3.7A
Time to Trip: 10s
Mounting Type: Through-Hole
Package/Case: Radial, Disc
Operating Temperature: -40°C to 85°C
Initial Resistance (Ri): 30mOhms
Post-Trip Resistance (R1): 90mOhms
Approvals: CSA, TUV, UL
