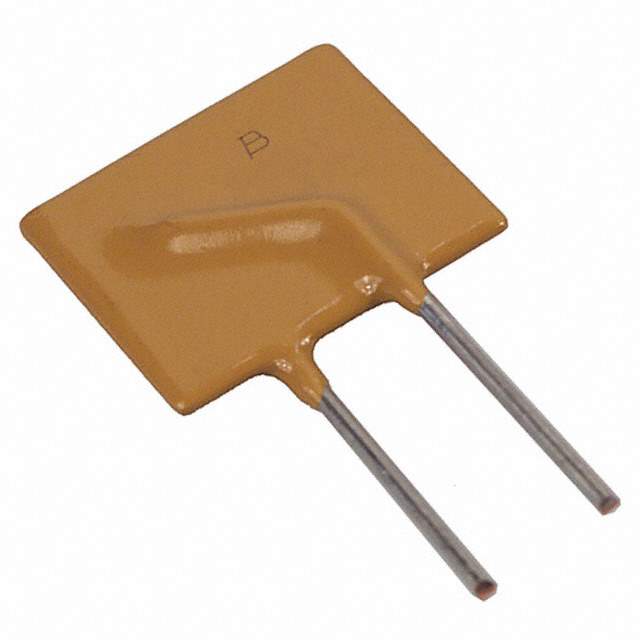

MF-R800 Real Image
Same model may have multiple batches, images only for reference.

MF-R800

Part No MF-R800
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description FUSE PTC RESETTABLE 8A HOLD
Datasheet
MF-R800 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Bulk
Status Active
Type Polymeric
Voltage - Max 30V
Current - Max 40A
Current - Hold (Ih) (Max) 8A
Current - Trip (It) 16A
Time to Trip 18.8s
Resistance - Initial (Ri) (Min) 5 mOhm
Resistance - Post Trip (R1) (Max) 30 mOhm
Temperature Range - Operating -40°C to 85°C
Mounting Through Hole
Dimension 0.953" L x 0.118" W (24.20mm x 3.00mm)
Height - Seated (Max) 1.295" (32.90mm)
Lead Spacing 0.402" (10.20mm)
Approvals cURus, TUV
Win Source Part Number 003426-MF-R800
Ultra Librarian 3D Model Ultra Librarian MF-R800 CAD Model

Description

The Bourns Inc. 003426-MF-R800 is a polymeric circuit protection component that can handle a maximum voltage of 30V and a maximum current of 40A.

  • Current Hold: 8A
  • Current Trip: 16A
  • Time to Trip: 18.8s
  • Resistance: 5 mOhm
  • Resistance Post Trip: 30 mOhm
  • Height: 1.295 inches
  • Lead Spacing: 0.402 inches
  • Applications: Automotive and industrial equipment
