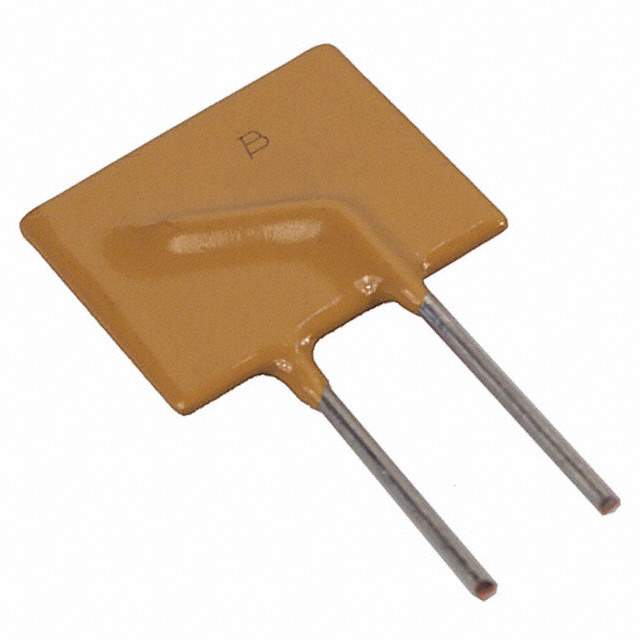

MF-R500 Real Image
Same model may have multiple batches, images only for reference.

MF-R500

Part No MF-R500
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description FUSE PTC RESETTABLE
Datasheet
MF-R500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Bulk
Status Active
Type Polymeric
Voltage - Max 30V
Current - Max 40A
Current - Hold (Ih) (Max) 5A
Current - Trip (It) 10A
Time to Trip 14.5s
Resistance - Initial (Ri) (Min) 10 mOhm
Resistance - Post Trip (R1) (Max) 50 mOhm
Temperature Range - Operating -40°C to 85°C
Mounting Through Hole
Dimension 0.685" L x 0.118" W (17.40mm x 3.00mm)
Height - Seated (Max) 0.980" (24.90mm)
Lead Spacing 0.402" (10.20mm)
Approvals cURus, TUV
Win Source Part Number 003423-MF-R500
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MF-R500 CAD Model

Description

Its supply and demand status is balanced.

  • Device Type: Polymeric circuit protection device
  • Applications: Automotive, industrial, and consumer electronics
  • Function: Overcurrent protection
  • Feature: Resettable fuse
  • Maximum Voltage: 30V
  • Maximum Current: 40A
  • Feature: Built-in thermal cutoff
  • Package: Compact through-hole
