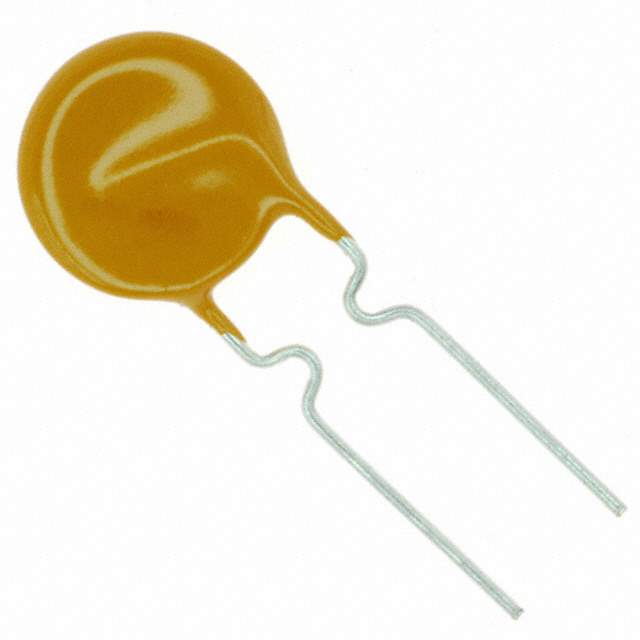

MF-R075-2 Real Image
Same model may have multiple batches, images only for reference.

MF-R075-2

Part No MF-R075-2
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description FUSE PTC RESETTABLE
Datasheet
MF-R075-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 60V
Current - Max 40A
Current - Hold (Ih) (Max) 750mA
Current - Trip (It) 1.5A
Time to Trip 6.3s
Resistance - Initial (Ri) (Min) 180 mOhm
Resistance - Post Trip (R1) (Max) 600 mOhm
Temperature Range - Operating -40°C to 85°C
Mounting Through Hole
Dimension 0.409" Dia x 0.122" W (10.40mm x 3.10mm)
Height - Seated (Max) 0.630" (16.00mm)
Lead Spacing 0.201" (5.10mm)
Approvals cURus, TUV
Win Source Part Number 003415-MF-R075-2
Ultra Librarian 3D Model Ultra Librarian MF-R075-2 CAD Model

Description

The Bourns Inc. MF-R075-2 is an active electronic component that is approved by cURus and TUV.

  • Supply and demand status: Balanced
  • Manufacturer: Bourns Inc.
  • Win Source Part Number: 003415
  • Type: Polymeric positive temperature coefficient resettable fuse
  • Common Use: Commonly used in electronic circuits
  • Features: High hold current and trip current which makes it suitable for various applications
  • Attributes: Reliable and efficient component that is widely used in various electronic devices
