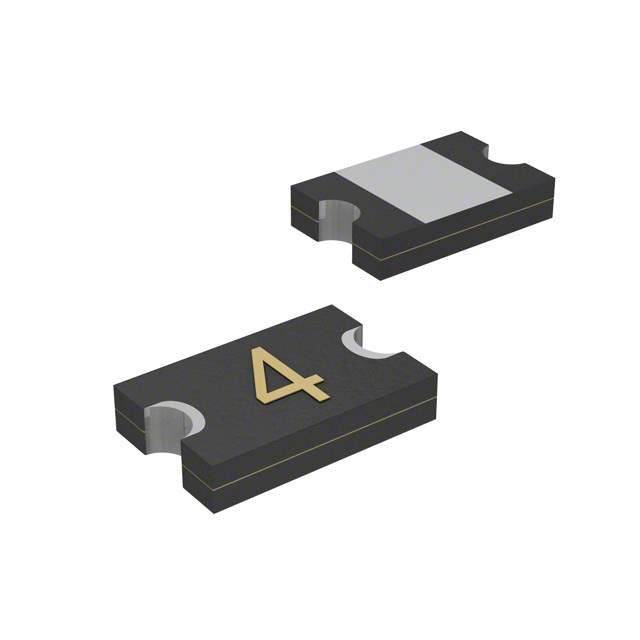

MF-PSMF020X-2

Part No MF-PSMF020X-2
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description FUSE PTC RESETTABLE SMD 0805
Datasheet
MF-PSMF020X-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 9V
Current - Max 40A
Current - Hold (Ih) (Max) 200mA
Current - Trip (It) 500mA
Time to Trip 20ms
Resistance - Initial (Ri) (Min) 650 mOhm
Resistance - Post Trip (R1) (Max) 3.5 Ohm
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.085" L x 0.053" W (2.15mm x 1.35mm)
Thickness (Max) 0.033" (0.85mm)
Approvals cURus, TUV
Win Source Part Number 003400-MF-PSMF020X-2
Ultra Librarian 3D Model Ultra Librarian MF-PSMF020X-2 CAD Model

Description

The Bourns Inc. PSMF020X-2 is a polymeric type circuit protection device with a voltage rating of 9V and a maximum current rating of 40A.

  • Mounting Type: SMD (SMT)
  • Thickness: 0.033" (0.85mm)
  • Approvals: cURus and TUV
  • Current Hold (Ih): 200mA
  • Current Trip (It): 500mA
  • Time to Trip: 20ms
  • Temperature Range: -40°C to 85°C
  • Resistance - Initial (Ri): 650 mOhm
  • Post-Trip Resistance (R1): 3.5 Ohm
  • Resistance @ 25°C (Typ): -
  • Ideal for use in: electronic circuits where overcurrent protection is required
