Same model may have multiple batches, images only for reference.

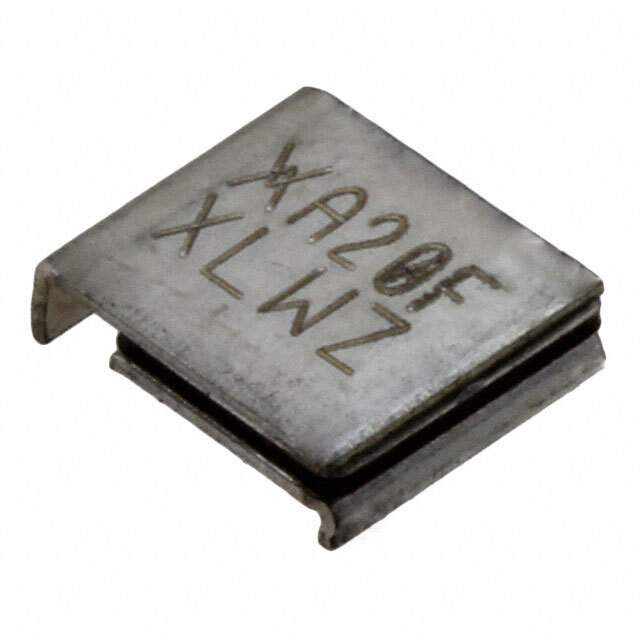

SMD200F-2018-2 Real Image
Same model may have multiple batches, images only for reference.

SMD200F-2018-2

Part No SMD200F-2018-2
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description POLYSWITCH PTC RESET 2A SMD
Datasheet
SMD200F-2018-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 6V
Current - Max 40A
Current - Hold (Ih) (Max) 2A
Current - Trip (It) 4.2A
Time to Trip 3s
Resistance - Post Trip (R1) (Max) 100 mOhm
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.200" L x 0.180" W (5.08mm x 4.58mm)
Thickness (Max) 0.060" (1.52mm)
Approvals CSA, TUV, UL
Win Source Part Number 103288-SMD200F-2018-2
Popularity Medium
Supply and Demand Status Balance
Resistance - Initial (Ri) (Min) 48 mOhm
Ultra Librarian 3D Model Ultra Librarian SMD200F-2018-2 CAD Model

Description

The Littelfuse Inc. 103288-SMD200F-2018-2 is a polymeric circuit protection component designed to protect against overcurrent.

  • Maximum Voltage: 6V
  • Maximum Current: 40A
  • Current Hold (Ih): 2A
  • Current Trip (It): 4.2A
  • Time to Trip: 3s
  • Approvals: CSA, TUV, and UL
  • Mounting: SMD (SMT)
  • Thickness: 0.060" (1.52mm)
  • Dimension: 0.200" L x 0.180" W (5.08mm x 4.58mm)
  • Resistance Initial (Ri): 48 mOhm
  • Resistance Post Trip (R1): 100 mOhm
  • Temperature Range: -40°C to 85°C
