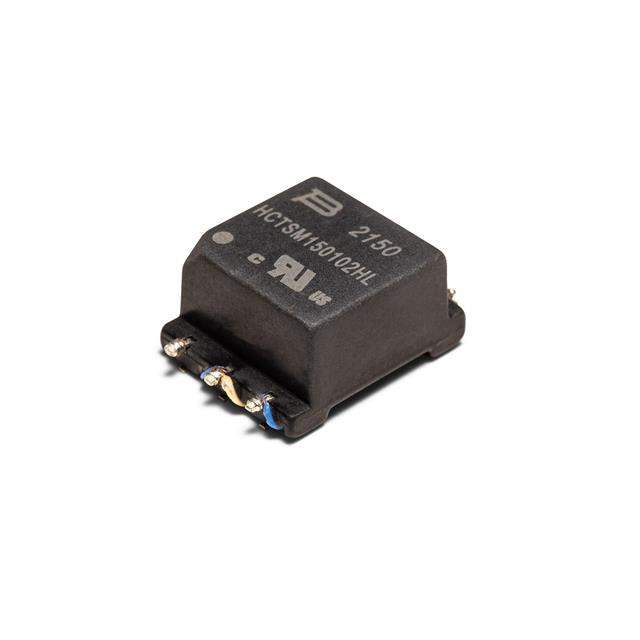

HCTSM150102HL-E Real Image
Same model may have multiple batches, images only for reference.

HCTSM150102HL-E

Part No HCTSM150102HL-E
Manufacturer Bourns Inc.
Catalog Pulse Transformers
Description TRANSF HIGH VOLTAGE ISOLATION / 80µH Isolation and Data Interface (Encapsulated) Pulse Transformer Surface Mount
Datasheet
HCTSM150102HL-E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Bourns Inc.
Series HCT
Package Tape & Reel
Transformer Type Isolation and Data Interface (Encapsulated)
Inductance 80µH
ET (Volt-Time) 25VµS
Mounting SMD (SMT)
Dimension 0.839" L x 0.591" W (21.30mm x 15.00mm)
Height - Seated (Max) 0.380" (9.65mm)
Temperature Range - Operating -40°C ~ 125°C
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Other Names 118-HCTSM150102HL-ETR,118-HCTSM150102HL-EDKR,118-HCTSM150102HL-ECT
Standard Package 200
Win Source Part Number 1114448-HCTSM150102HL-E
Ultra Librarian 3D Model Ultra Librarian HCTSM150102HL-E CAD Model

Description

The Bourns Inc. electronic component with Win Source Part Number 1114448-HCTSM150102HL-E is a transformer type product with an isolation and data interface (encapsulated).

  • Type: Transformer
  • Feature: Isolation and Data Interface (Encapsulated)
  • Inductance: 80μH
  • Mounting Type: SMD (SMT)
  • Temperature Range: -40°C ~ 125°C
  • Dimension: 0.839" L x 0.591" W (21.30mm x 15.00mm)
  • Package: Standard Package
  • Package Quantity: 200
