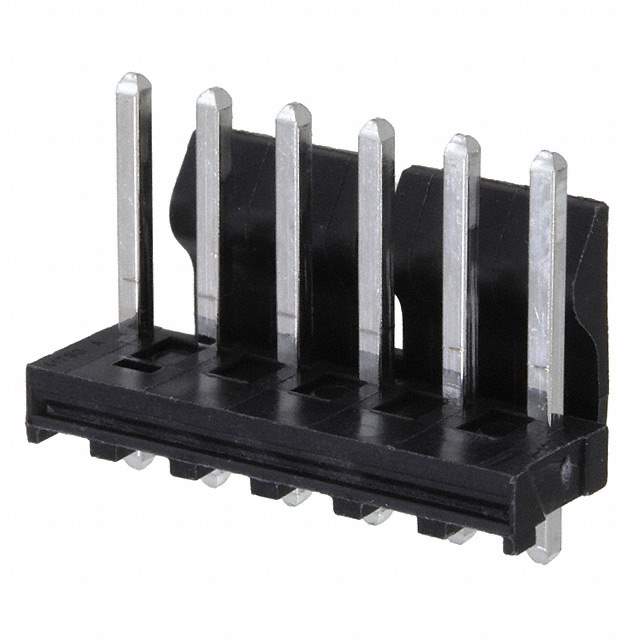

1718130006

Name: 1718130006
Brand: Molex, LLC
SKU: 1293225
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1718130006
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Molex
Series	KK396, 171813
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.156" (3.96mm)
Number of Positions	6
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 1 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Friction Lock
Contact Length - Mating	0.448" (11.38mm)
Contact Length - Post	0.093" (2.35mm)
Overall Contact Length	0.671" (17.05mm)
Insulation Height	0.446" (11.33mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	60.0µin (1.52µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-2
Insulation Color	Black
Contact Finish Thickness - Post	60.0µin (1.52µm)
Applications	Automotive, General Purpose, Industrial, Medical, Telecommunications
Base Product Number	171813
Other Names	171813-0006,WM10164
Standard Package	1,050
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293225-1718130006
Ultra Librarian 3D Model	Ultra Librarian 1718130006 CAD Model

Description

The Molex KK396, 171813 is a male pin header connector with 6 positions.

Product Name: Molex KK396, 171813
Positions: 6
Connection Type: Board to board or cable
Applications: Automotive, general purpose, industrial, medical, and telecommunications
Contact Material: Brass
Voltage Rating: - volts
Contact Finish: Tin
Contact Finish Thickness: 60.0μin
Shrouding: 1 Wall
Mounting Type: Through-hole
Insulation Material: Polyamide (PA), Nylon
Insulation Color: Black
