Same model may have multiple batches, images only for reference.

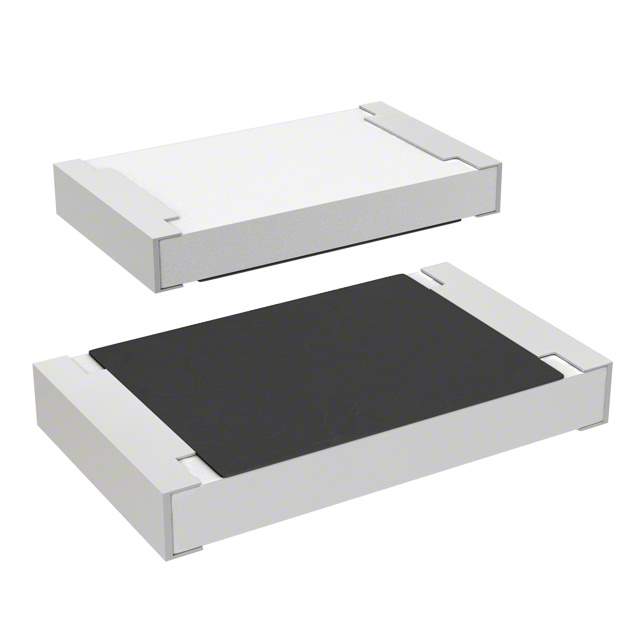

CRS0805-FX-1004ELF Real Image
Same model may have multiple batches, images only for reference.

CRS0805-FX-1004ELF

Part No CRS0805-FX-1004ELF
Manufacturer Bourns Inc.
Catalog Chip Resistor - Surface Mount
Description RES SMD 1M OHM 1% 1/4W 0805 / 1 MOhms ±1% 0.25W, 1/4W Chip Resistor 0805 (2012 Metric) High Voltage, Pulse Withstanding Thick Film
Datasheet
CRS0805-FX-1004ELF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Bourns Inc.
Series CRS
Package Tape & Reel
Resistance 1 mOhms
Tolerance ±1%
Power (Watts) 0.25W, 1/4W
Composition Thick Film
Features High Voltage, Pulse Withstanding
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.024" (0.60mm)
Number of Terminations 2
Base Product Number CRS0805
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names CRS0805-FX-1004ELFDKR,CRS0805-FX-1004ELFCT,CRS0805-FX-1004ELFTR
Standard Package 5,000
Win Source Part Number 1053115-CRS0805-FX-1004ELF
Ultra Librarian 3D Model Ultra Librarian CRS0805-FX-1004ELF CAD Model

Description

The CRS0805-FX-1004ELF is a chip resistor from Bourns Inc.

  • Manufacturer: Bourns Inc.
  • Composition: Thick Film
  • Resistance: 1 mOhm
  • Tolerance: ±1%
  • Power (Watts): 0.25 W
  • Packaging: Tape and Reel
  • Temperature Coefficient: ±100 ppm/°C
  • Height: 0.024" (0.60 mm)
  • Current Rating: 5 A
