Same model may have multiple batches, images only for reference.

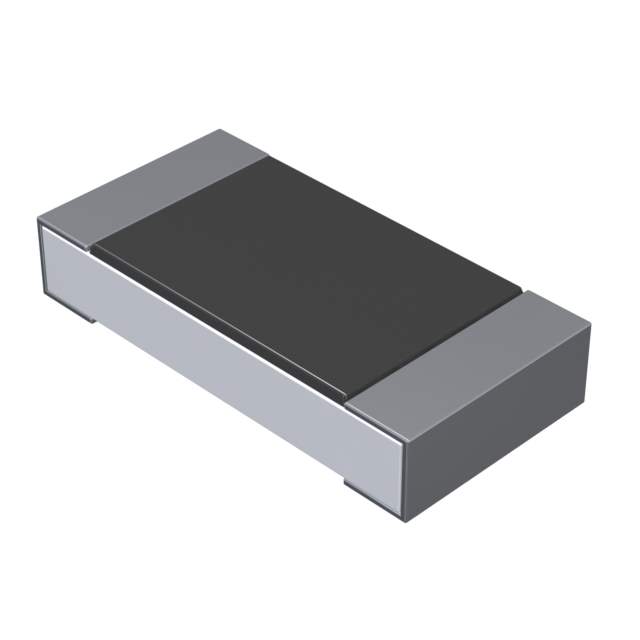

CR1206-JW-165ELF Real Image
Same model may have multiple batches, images only for reference.

CR1206-JW-165ELF

Part No CR1206-JW-165ELF
Manufacturer Bourns Inc.
Catalog Chip Resistor - Surface Mount
Description RES SMD 1.6M OHM 5% 1/4W 1206 / 1.6 MOhms ±5% 0.25W, 1/4W Chip Resistor 1206 (3216 Metric) Moisture Resistant Thick Film
Datasheet
CR1206-JW-165ELF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Bourns Inc.
Series CR1206
Package Tape & Reel (TR)
Resistance 1.6 MOhms
Tolerance ±5%
Power (Watts) 0.25W, 1/4W
Composition Thick Film
Features Moisture Resistant
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.030" (0.75mm)
Number of Terminations 2
Base Product Number CR1206
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Standard Package 5,000
Win Source Part Number 1066441-CR1206-JW-165ELF
Ultra Librarian 3D Model Ultra Librarian CR1206-JW-165ELF CAD Model

Description

The CR1206-JW-165ELF is a thick-film chip resistor from Bourns Inc.

  • Resistance: 1.6 MOhms
  • Tolerance: ±5%
  • Power Rating: 0.25W
  • Temperature Coefficient: ±200ppm/°C
  • Feature: Moisture Resistant
  • Package: 1206
  • Height: 0.030" (0.75mm)
  • Dimensions: 0.126" L x 0.063" W (3.20mm x 1.60mm)
