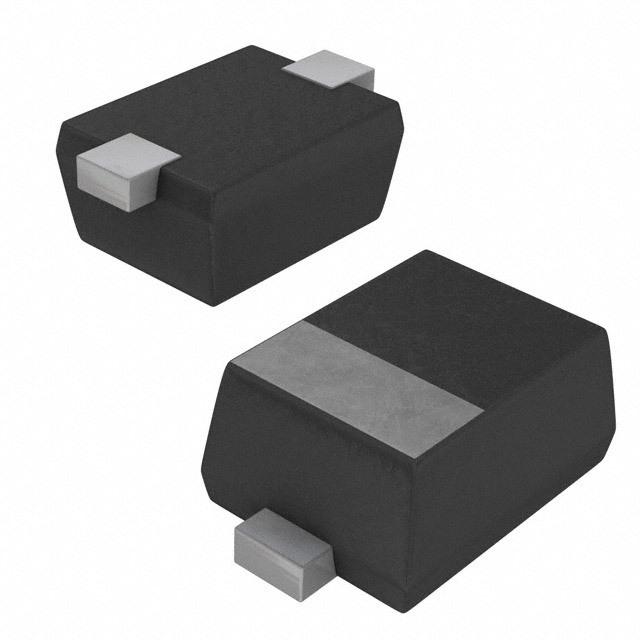

VESD03A1C-02Z-GS08 Vishay
Same model may have multiple batches, images only for reference.

VESD03A1C-02Z-GS08

Part No VESD03A1C-02Z-GS08
Manufacturer Vishay
Catalog TVS - Diodes
Description TVS DIODE 3.3VWM 10VC SOD923
Datasheet
VESD03A1C-02Z-GS08 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Vishay
Packaging Reel - TR
Status Obsolete(EOL)
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 3.3V (Max)
Minimum Breakdown Voltage 5V
Max Clamping Voltage 10V
Peak Pulse Current(Ippm) 9.5A (8/20μs)
Power Dissipation - Pd 95W
Applications General Purpose
Capacitance @ Frequency 78pF @ 1MHz
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package SOD-923
Win Source Part Number 1116992-VESD03A1C-02Z-GS08
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian VESD03A1C-02Z-GS08 CAD Model

Description

This Vishay-manufactured electronic component is a Zener type with a capacitance of 78pF at 1MHz.

  • Capacitance @ Frequency: 78pF @ 1MHz
  • Application: General Purpose
  • Peak Pulse Current: 9.5A (8/20μs)
  • Lifecycle Status: Obsolete (EOL)
  • Stand-Off Voltage: 3.3V (Max)
  • Minimum Breakdown Voltage: 5V
  • Maximum Clamping Voltage: 10V
  • Power Dissipation: 95W
  • Mounting Type: SMD (SMT)
  • Channel Type: Unidirectional
  • Case/Package: SOD-923
  • Popularity: Medium
  • Supply and Demand Status: Sufficient
