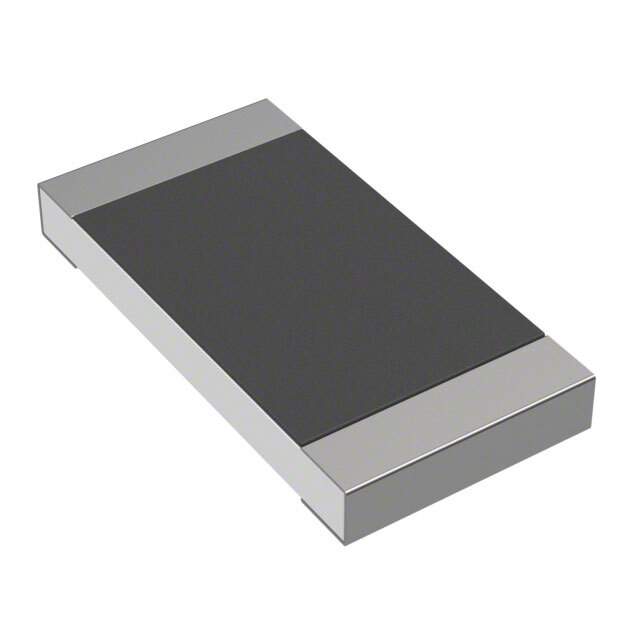

Same model may have multiple batches, images only for reference.

CMP2010-FX-1004ELF

Name: CMP2010-FX-1004ELF
Brand: Bourns Inc.
SKU: 967943
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	CMP2010-FX-1004ELF
Manufacturer	Bourns Inc.
Catalog	Chip Resistor - Surface Mount
Description	RESHIGHPOWER 2010 1M 1% 1W TC100 / 1 MOhms ±1% 1W Chip Resistor 2010 (5025 Metric) Pulse Withstanding Thick Film
Datasheet	CMP2010-FX-1004ELF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors>Chip Resistor - Surface Mount
Mfr	Bourns Inc.
Series	CMP
Package	Tape & Reel
Resistance	1 mOhms
Tolerance	±1%
Power (Watts)	1W
Composition	Thick Film
Features	Pulse Withstanding
Temperature Coefficient	±100ppm/°C
Temperature Range - Operating	-55°C ~ 155°C
Package / Case	2010 (5025 Metric)
Supplier Device Package	2010
Dimension	0.197" L x 0.098" W (5.00mm x 2.50mm)
Height - Seated (Max)	0.028" (0.70mm)
Number of Terminations	2
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.21.0030
Other Names	118-CMP2010-FX-1004ELFCT,118-CMP2010-FX-1004ELFTR,118-CMP2010-FX-1004ELFDKR
Standard Package	4,000
Win Source Part Number	967943-CMP2010-FX-1004ELF
Ultra Librarian 3D Model	Ultra Librarian CMP2010-FX-1004ELF CAD Model

Description

The Bourns Inc. CMP2010-FX-1004ELF is a chip resistor used in surface mount technology.

Pulse Withstanding: Yes
Mounting Type: Surface Mount
Package: Tape and Reel
Height: 0.028" (0.70mm)
Tolerance: ±1%
Temperature Coefficient: ±100ppm/°C
Power: 1W
Terminations: 2
Resistance: 1 mOhms
Operating Temperature: -55°C ~ 155°C
Dimension: 0.197" L x 0.098" W (5.00mm x 2.50mm)
Failure Rate: Not associated with any failure rate
