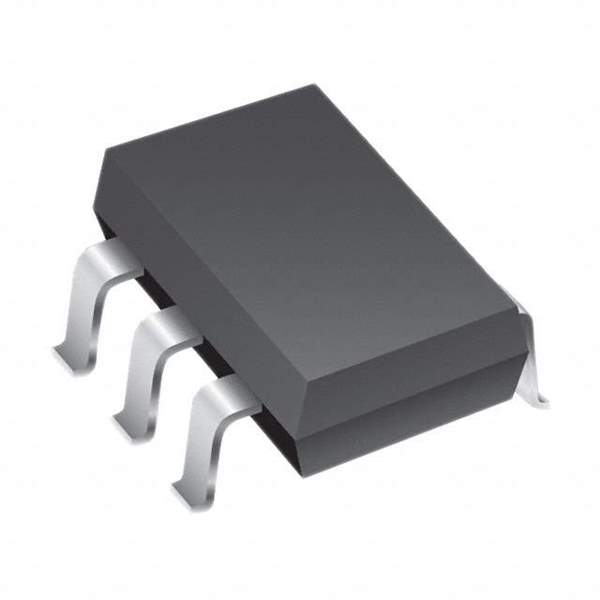

CDSOT563-0502 Real Image
Same model may have multiple batches, images only for reference.

CDSOT563-0502

Part No CDSOT563-0502
Manufacturer Bourns Inc.
Catalog TVS - Diodes
Description TVS DIODE 5VWM 9VC SMD
Datasheet
CDSOT563-0502 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Steering (Rail to Rail)
Unidirectional Channels 2
STAND-OFF Voltage (Vwm) 5V (Max)
Minimum Breakdown Voltage 6V
Max Clamping Voltage 9V (Typ)
Peak Pulse Current(Ippm) 6A (8/20μs)
Power Line Protection Yes
Applications General Purpose
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package SOT-563
Win Source Part Number 1029025-CDSOT563-0502
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian CDSOT563-0502 CAD Model

Description

The Bourns Inc. Steering (Rail to Rail) circuit protection device is designed to protect electronic components from overcurrent.

  • STAND-OFF Voltage (Vwm): 5V (Max)
  • Minimum Breakdown Voltage: 6V
  • Maximum Clamping Voltage: 9V (Typ)
  • Peak Pulse Current(Ippm): 6A (8/20μs)
  • Features: Power Line Protection
  • Mounting: SMD (SMT)
  • Direction: Unidirectional
  • Package/Case: SOT-563
  • Temperature Range: -40°C to 125°C (TJ)
