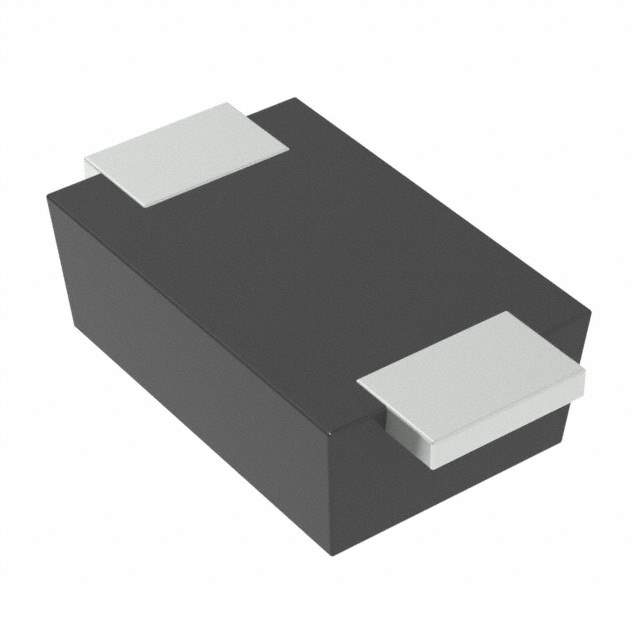

SJD12C36L01 Real Image
Same model may have multiple batches, images only for reference.

SJD12C36L01

Part No SJD12C36L01
Manufacturer Yageo
Catalog TVS - Diodes
Description TVS DIODE 36VWM 58.1VC SOD123S
Datasheet
SJD12C36L01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Estimated Pruduction Lead Time 29 Weeks
Features 58.1V Clamp 3.5A Ipp Tvs Diode Surface Mount SOD-123S
Manufacturer Yageo
Series SJD12A(C)XXXL01
Package Reel - TR
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Surface Mount
Package SOD-123F
Case / Package SOD-123S
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 13-SJD12C36L01DKR, 13-SJD12C36L01CT, 13-SJD12C36L01TR
Quantity per package 3000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 933885-SJD12C36L01
Ultra Librarian 3D Model Ultra Librarian SJD12C36L01 CAD Model

Description

The Yageo SJD12A(C)XXXL01 series TVS diodes are designed to protect sensitive electronics from damage or latch-up due to ESD, lightning, and other voltage-induced transient events. SJD12A(C)XXXL01 is manufactured by Yageo.

  • Package: surface mount diodes are packaged in SOD-123S
  • Clamp: 58.1V
  • Ipp: 3.5A
  • Operating Temperature Range: -55°C to 150°C
  • Reel contains: 3,000 diodes
  • Estimated production lead time: 29 weeks
  • ECCN: EAR99
  • HTSUS: 8541.10.0080
