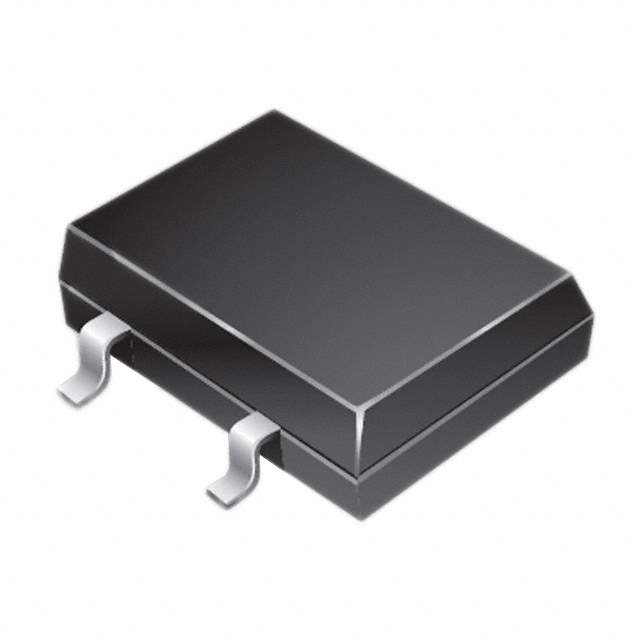

CDNBS04-B08400 Real Image
Same model may have multiple batches, images only for reference.

CDNBS04-B08400

Part No CDNBS04-B08400
Manufacturer Bourns Inc.
Catalog Bridge Rectifiers
Description DIODE BRIDGE RECTIFIER
Datasheet
CDNBS04-B08400 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 400V
Current - Average Rectified (Io) 800mA
Voltage - Forward (Vf) (Max) @ If 1.15V @ 400mA
Current - Reverse Leakage @ Vr 5μA @ 400V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package NBS04
Win Source Part Number 1028836-CDNBS04-B08400
Popularity Medium
Supply and Demand Status Sufficient
Application Field Used in Power Management, Consumer Electronics, Lighting, Communications & Networking, Industrial
Ultra Librarian 3D Model Ultra Librarian CDNBS04-B08400 CAD Model

Description

The CDNBS04-B08400 is a single-phase diode that is widely used in power management, consumer electronics, lighting, communications, and networking by Bourns Inc.

  • Maximum Forward Voltage: 1.15V @ 400mA
  • Peak Reverse Voltage: 400V
  • Average Rectified Current: 800mA
  • Reverse Leakage Current: 5μA @ 400V
  • Mounting: Surface Mount
  • Packaging: Reel
  • Case/Package: NBS04
  • Temperature Range: -55°C to 150°C (TJ)
  • Technology: Standard
