Same model may have multiple batches, images only for reference.

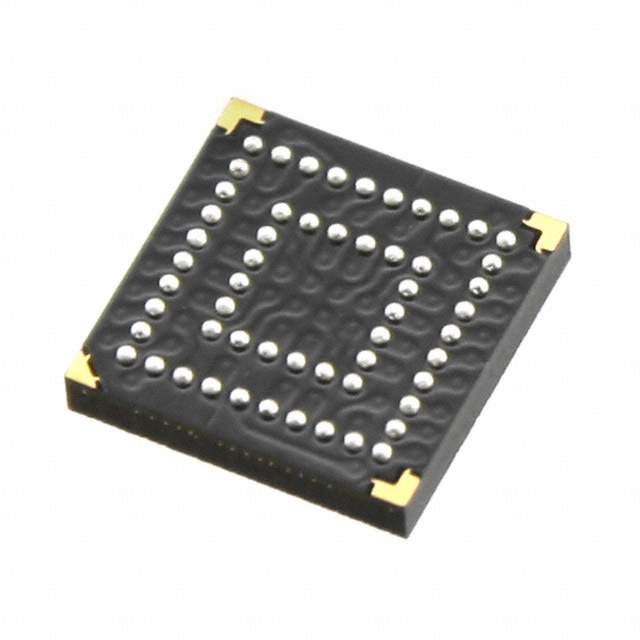

XC2C32A-6CPG56C Real Image
Same model may have multiple batches, images only for reference.

XC2C32A-6CPG56C

Part No XC2C32A-6CPG56C
Manufacturer Xilinx Inc.
Catalog Embedded - CPLDs (Complex Programmable Logic Devices)
Description CPLD CoolRunner -II Family 750 Gates 32 Macro Cells 200MHz 0.18um, CMOS Technology 1.8V 56-Pin CSBGA / IC CPLD 32MC 5.5NS 56BGA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Xilinx Inc.
Packaging Tray
Status Active
Programmable Type In System Programmable
Delay Time tpd(1) Max 5.5ns
Voltage Supply - Internal 1.7 V to 1.9 V
Number of Logic Elements/Blocks 2
Number of Macrocells 32
Number of Gates 750
Number of I/O 33
Temperature Range - Operating 0°C to 70°C (TA)
Mounting SMD (SMT)
Case / Package 56-CSBGA (6x6)
Win Source Part Number 037745-XC2C32A-6CPG56C
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name XC2C32A
Introduction Date September 26, 2001
ECCN EAR99
Country of Origin Philippines
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian XC2C32A-6CPG56C CAD Model

Description

The XC2C32A-6CPG56C is a high-performance programmable integrated circuit manufactured by Xilinx Inc.

  • Programmable Type: In-system programmable
  • Delay Time Max: 5.5ns
  • Number of I/Os: 33
  • Voltage Supply Range: 1.7 V to 1.9 V
  • Number of Gates: 750
  • Number of Logic Elements/Blocks: 2
  • Number of Macrocells: 32
  • Case: 56-CSBGA
  • Mounting: Surface
  • Operating Temperature: 0°C to 70°C
  • Lifecycle Status: Active
  • Popularity: High
  • Supply and Demand Status: Limited
