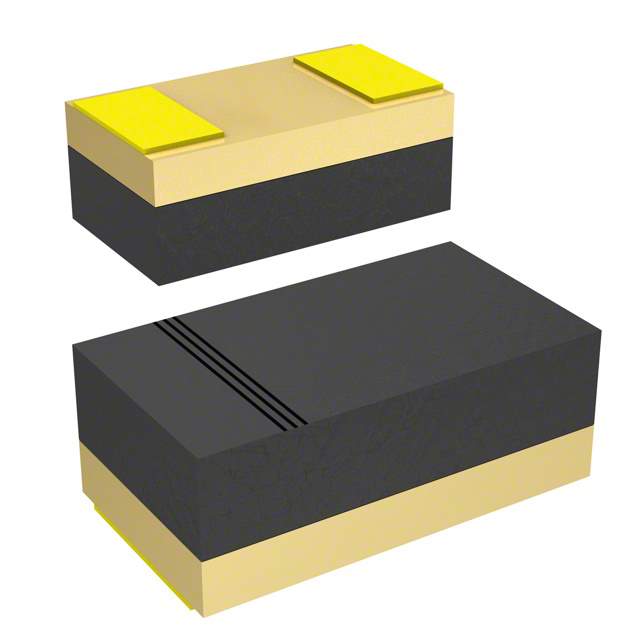

CD0603-S0180R Real Image
Same model may have multiple batches, images only for reference.

CD0603-S0180R

Part No CD0603-S0180R
Manufacturer Bourns Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 80V 100MA 0603
Datasheet
CD0603-S0180R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Features Diode Standard 80 V 100mA Surface Mount 0603
Manufacturer Bourns Inc.
Package Reel - TR
Part Status Obsolete
Speed Small Signal =< 200mA (Io), Any Speed
Mounting Surface Mount
Package 0603 (1608 Metric)
Case / Package 0603
Family Name CD0603-S0180
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Other Part Number CD0603-S0180RTR, CD0603S0180R, CD0603-S0180RCT, CD0603-S0180RDKR
Quantity per package 4000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 844605-CD0603-S0180R
Ultra Librarian 3D Model Ultra Librarian CD0603-S0180R CAD Model

Description

This diode from Bourns Inc. is a surface mount device with a package size of 0603 (1608 Metric).

  • Package Size: 0603 (1608 Metric)
  • Diode Standard: 80 V
  • Maximum Current: 100mA
  • Category: Discrete Semiconductor Products
  • Family: CD0603-S0180
  • Package: reel-TR
  • Quantity per Package: 4000
  • Status: obsolete
  • Supply and Demand: limited
