Same model may have multiple batches, images only for reference.

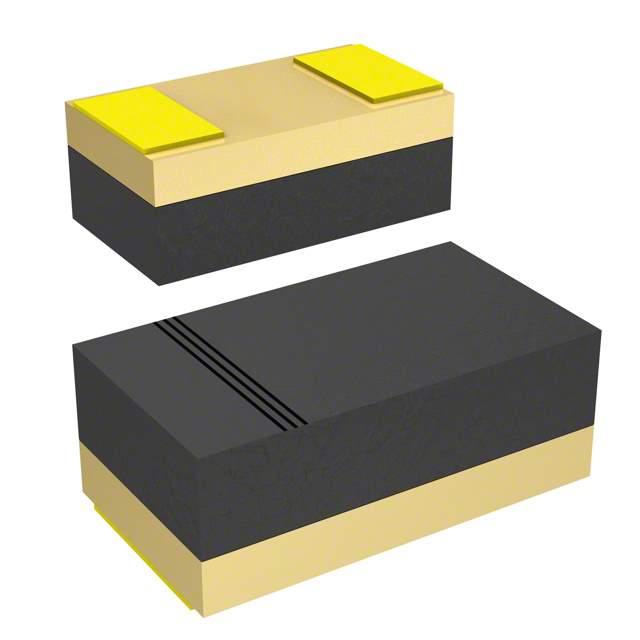

CD0603-S01575 Real Image
Same model may have multiple batches, images only for reference.

CD0603-S01575

Part No CD0603-S01575
Manufacturer Bourns Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 75V 150MA 0603 / Diode Standard 75 V 150mA Surface Mount 0603
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Bourns Inc.
Package Tape & Reel
Product Status Obsolete
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 75 V
Current - Average Rectified (Io) 150mA
Voltage - Forward (Vf) (Max) @ If 1 V @ 50 mA
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 4 ns
Current - Reverse Leakage @ Vr 2.5 µA @ 75 V
Capacitance @ Vr, F 3pF @ 1V, 1MHz
Mounting SMD (SMT)
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Operating Temperature - Junction -40°C ~ 125°C
Base Product Number CD0603
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Other Names CD0603-S01575TR,CD0603-S01575DKR,CD0603-S01575CT,CD0603S01575
Standard Package 5,000
Win Source Part Number 1107365-CD0603-S01575
Ultra Librarian 3D Model Ultra Librarian CD0603-S01575 CAD Model

Description

The CD0603-S01575 is a standard rectifier diode from Bourns Inc.

  • Maximum Reverse Voltage Rating: 75 V
  • Maximum Forward Voltage: 1 V @ 50 mA
  • Maximum Average Rectified Current: 150 mA
  • Reverse Recovery Time: 4 ns
  • Capacitance: 3 pF @ 1 V and 1 MHz
  • Package: 0603 (1608 metric)
  • RoHS Compliant: Yes
  • Applications: Power supplies, lighting, and battery chargers
