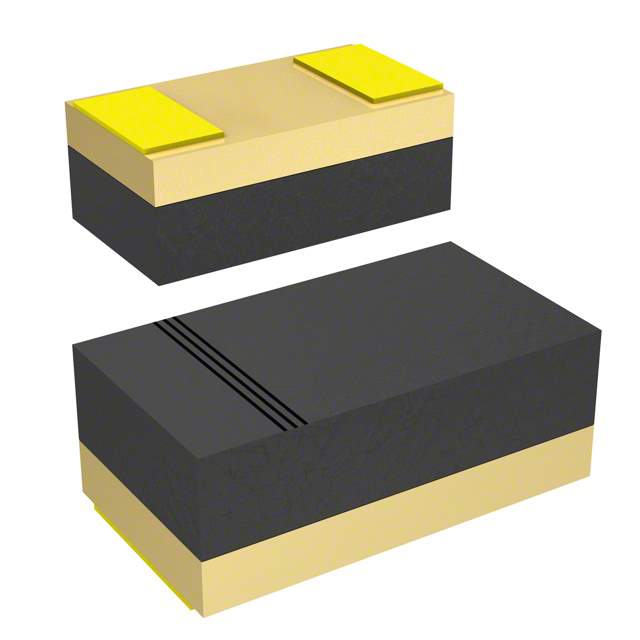

CD0603-B0140R Real Image
Same model may have multiple batches, images only for reference.

CD0603-B0140R

Part No CD0603-B0140R
Manufacturer Bourns Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 40V 100MA 0603
Datasheet
CD0603-B0140R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Not For New Designs
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40V
Current - Average Rectified (Io) 100mA
Voltage - Forward (Vf) (Max) @ If 450mV @ 10mA
Current - Reverse Leakage @ Vr 1μA @ 10V
Capacitance @ Vr, F 9pF @ 10V, 1MHz
Mounting SMD (SMT)
Case / Package 0603
Operating Temperature - Junction -40°C to 125°C
Win Source Part Number 1028088-CD0603-B0140R
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CD0603-B0140R CAD Model

Description

The Bourns Inc. CD0603-B0140R is a Schottky diode that comes in a reel package.

  • Maximum DC Reverse Voltage: 40V
  • Average Rectified Current (Io): 100mA
  • Voltage Forward (Vf): 450mV @ 10mA
  • Current Reverse Leakage @ Vr: 1μA @ 10V
  • Capacitance @ Vr, F: 9pF @ 10V, 1MHz
  • Mounting: SMD (SMT)
  • Case/Package: 0603
  • Status: Not for new designs
