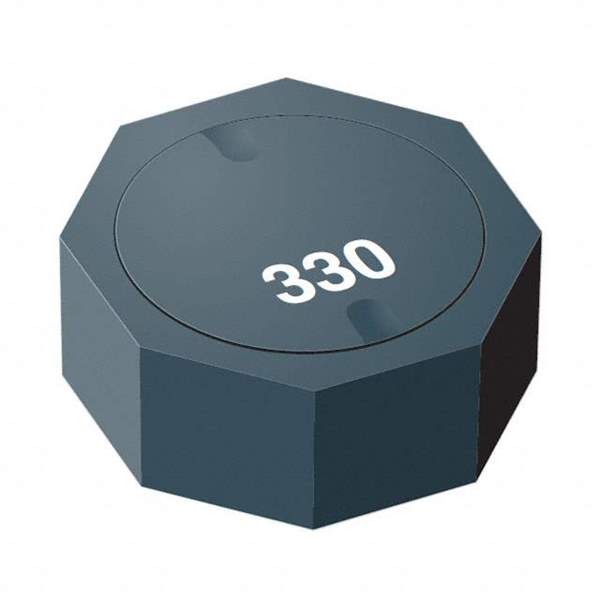

SRU1048A-151Y Real Image
Same model may have multiple batches, images only for reference.

SRU1048A-151Y

Part No SRU1048A-151Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRU1048A-151Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRU1048A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 150 µH
Tolerance ±30%
Current Rating (Amps) 1 A
Current - Saturation (Isat) 800mA
Shielding Shielded
DC Resistance (DCR) 305mOhm Max
Q @ Freq 24 @ 796kHz
Frequency - Self Resonant 4.5MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max) 0.201" (5.10mm)
Base Product Number SRU1048A
Other Names SRU1048A-151Y,SRU1048A-151YTR,SRU1048A-151YDKR,SRU1048A-151YCT
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273131-SRU1048A-151Y
Ultra Librarian 3D Model Ultra Librarian SRU1048A-151Y CAD Model

Description

The 1273131-SRU1048A-151Y is a fixed inductor used for various applications.

  • Manufacturer: Bourns Inc.
  • Type: Drum Core, Wirewound
  • Packaging: Tape and Reel
  • Shielding: Shielded
  • Inductance: 150 µH
  • Tolerance: ±30%
  • Q @ Freq: 24 @ 796kHz
  • Frequency Self-Resonant: 4.5MHz
  • DC Resistance: 305mOhm Max
  • Current Rating: 1Amps
  • AEC-Q200: Yes
  • Temperature Range: -40°C ~ 125°C
  • Applications: Automotive and Telecom
