Same model may have multiple batches, images only for reference.

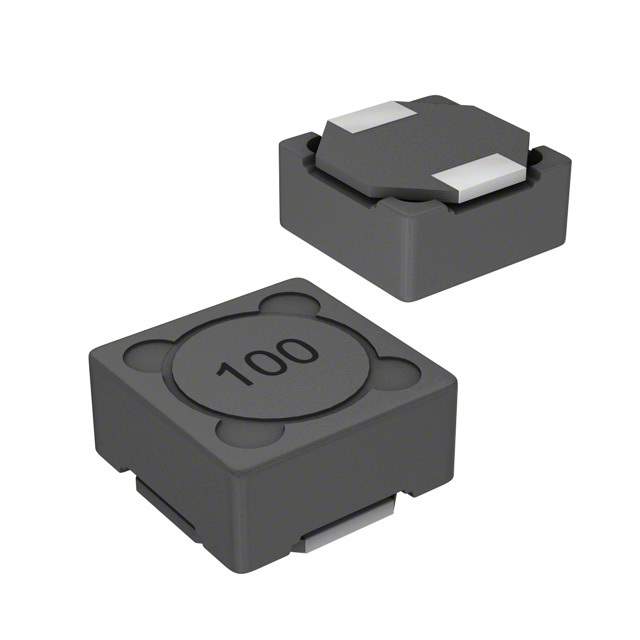

SRR1260-1R5Y Real Image
Same model may have multiple batches, images only for reference.

SRR1260-1R5Y

Part No SRR1260-1R5Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR1260-1R5Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR1260
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 1.5 µH
Tolerance ±30%
Current Rating (Amps) 8.8 A
Current - Saturation (Isat) 9.9A
Shielding Shielded
DC Resistance (DCR) 9.5mOhm Max
Q @ Freq 24 @ 7.96MHz
Frequency - Self Resonant 86MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max) 0.256" (6.50mm)
Base Product Number SRR1260
Other Names SRR1260-1R5YTR,SRR1260-1R5Y,SRR1260-1R5YCT,SRR12601R5Y,SRR1260-1R5YDKR
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273445-SRR1260-1R5Y
Ultra Librarian 3D Model Ultra Librarian SRR1260-1R5Y CAD Model

Description

The Bourns Inc. SRR1260-1R5Y is a fixed inductor that is designed for use in Inductors, Coils, Chokes.

  • Inductance: 1.5 µH
  • Tolerance: ±30%
  • Feature: Shielded
  • Packaging: Tape & reel
  • Mounting: SMD (SMT) technology
  • DC Resistance (DCR): 9.5mOhm Max
  • Height-Seated (Max): 0.256" (6.50mm)
  • Dimension: 0.492" L x 0.492" W (12.50mm x 12.50mm)
  • REACH: Unaffected
