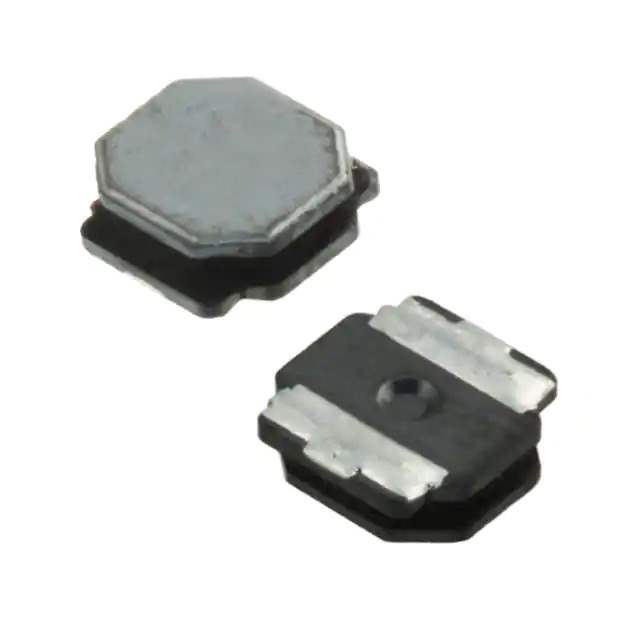

NRS5040T220MMGK

Name: NRS5040T220MMGK
Brand: Taiyo Yuden
SKU: 649432
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	NRS5040T220MMGK
Manufacturer	Taiyo Yuden
Catalog	Fixed Inductors
Description	FIXED IND 22UH 1.4A 163.8MOHM SM
Datasheet	NRS5040T220MMGK Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Taiyo Yuden
Series	NR, S Type
Package	Tape & Reel
Product Status	Not For New Designs
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	22 µH
Tolerance	±20%
Current Rating (Amps)	1.4 A
Current - Saturation (Isat)	1.5A
Shielding	Shielded
DC Resistance (DCR)	163.8mOhm Max
Frequency - Self Resonant	9MHz
Temperature Range - Operating	-25°C ~ 120°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.193" L x 0.193" W (4.90mm x 4.90mm)
Height - Seated (Max)	0.157" (4.00mm)
Standard Package	1,500 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	649432-NRS5040T220MMGK
Ultra Librarian 3D Model	Ultra Librarian NRS5040T220MMGK CAD Model

Alternative Products

Description

The 649432-NRS5040T220MMGK is a drum core, wirewound inductor from Taiyo Yuden.

Series: NR series
Size: 0.193" L x 0.193" W (4.90mm x 4.90mm)
Inductance: 22 µH
Tolerance: ±20%
Shielded: yes
Maximum Seated Height: 0.157" (4.00mm)
Operating Temperature Range: -25°C to 120°C
DC Resistance (DCR): 163.8mOhm
Maximum Current Rating: 1.4 A
Mounting Type: surface mount
Package: nonstandard
Core Material: ferrite
Self-Resonant Frequency: 9MHz
New Designs: not for new designs
Applications: inductors, coils, and chokes
