Same model may have multiple batches, images only for reference.

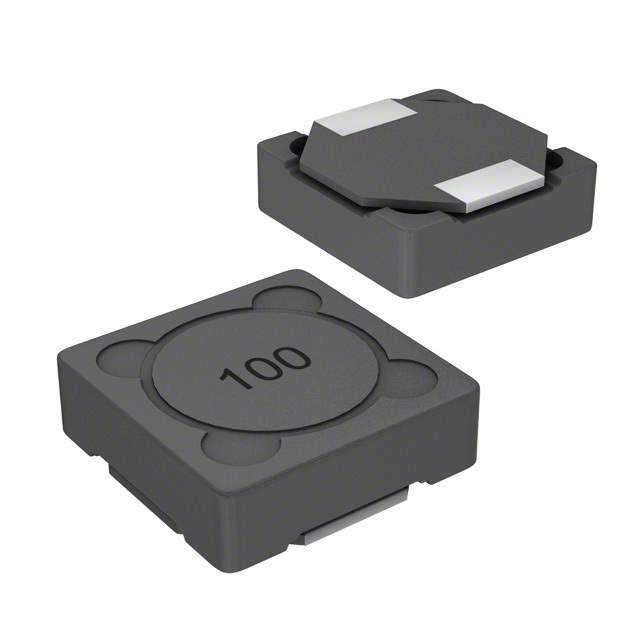

SRR1240-680M Real Image
Same model may have multiple batches, images only for reference.

SRR1240-680M

Part No SRR1240-680M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR1240-680M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR1240
Package Tape & Reel (TR),Cut Tape (CT)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 68 µH
Tolerance ±20%
Current Rating (Amps) 1.5 A
Current - Saturation (Isat) 1.5A
Shielding Shielded
DC Resistance (DCR) 200mOhm Max
Q @ Freq 19 @ 2.52MHz
Frequency - Self Resonant 11MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max) 0.177" (4.50mm)
Base Product Number SRR1240
Other Names SRR1240-680MCT,SRR1240-680MTR,-SRR1240-680M,-SRR1240-680MTR,-SRR1240-680M,SRR1240-680M,-SRR1240-680MCT,SRR1240680M
Standard Package 800
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273451-SRR1240-680M
Ultra Librarian 3D Model Ultra Librarian SRR1240-680M CAD Model

Description

The SRR1240-680M is a fixed inductor manufactured by Bourns Inc.

  • Type: Drum core, wirewound
  • Feature: Shielding
  • Inductance: 68 µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 200mOhm Max
  • Current Rating: 1.5 A
  • REACH: Unaffected
  • ECCN: EAR99
  • MSL Level: 1 (unlimited)
  • HTSUS: 8504.50.4000
