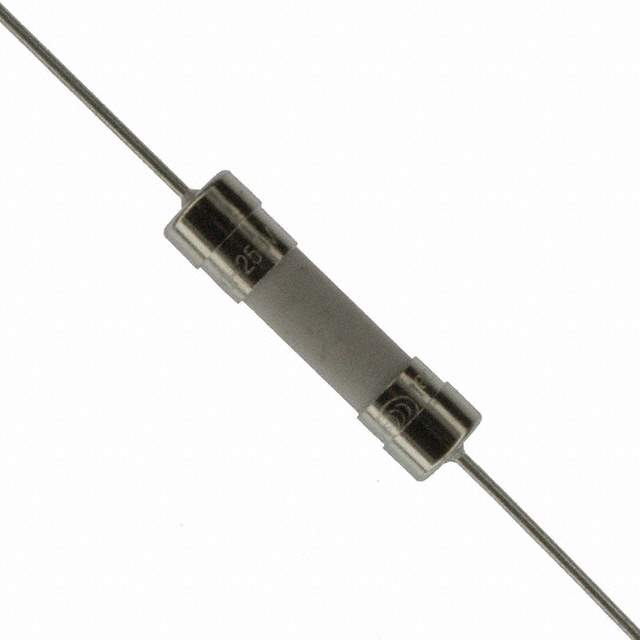

5HFP 200-R Real Image
Same model may have multiple batches, images only for reference.

5HFP 200-R

Part No 5HFP 200-R
Manufacturer Bel Fuse Inc.
Catalog Fuses
Description FUSE CERAMIC 200MA 250VAC 5X20MM
Datasheet
5HFP 200-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bel Fuse Inc.
Series 5HFP
Packaging Bulk
Fuse Type Cartridge, Ceramic
Current Rating 200mA
Voltage Rating - AC 250V
Response Time Fast
Package 5mm x 20mm (Axial)
Mounting Style Through Hole
Breaking Capacity @ Rated Voltage 1.5kA
Melting I2t 0.016
Approvals CCC, CE, CSA, cURus
Operating Temperature Range -55°C ~ 125°C
Dimension 0.217" Dia x 0.827" L (5.50mm x 21.00mm)
Resistance 1.22 Ohm
Win Source Part Number 764228-5HFP 200-R
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 5HFP 200-R CAD Model

Description

The Bel Fuse Inc. fuse 764228-5HFP 200-R is a cartridge, ceramic type fuse that has a current rating of 200mA and a voltage rating of 250V AC.

  • Current Rating: 200mA
  • Voltage Rating: 250V AC
  • Response Time: Fast
  • Breaking Capacity: 1.5kA @ rated voltage
  • Dimensions: 0.217" Dia x 0.827" L (5.50mm x 21.00mm)
  • Resistance: 1.22 Ohm
  • Applications: Circuit Protection
  • Popularity: Medium
  • Approvals: CCC, CE, CSA, cURus
  • Operating Temperature: -55°C to 125°C
