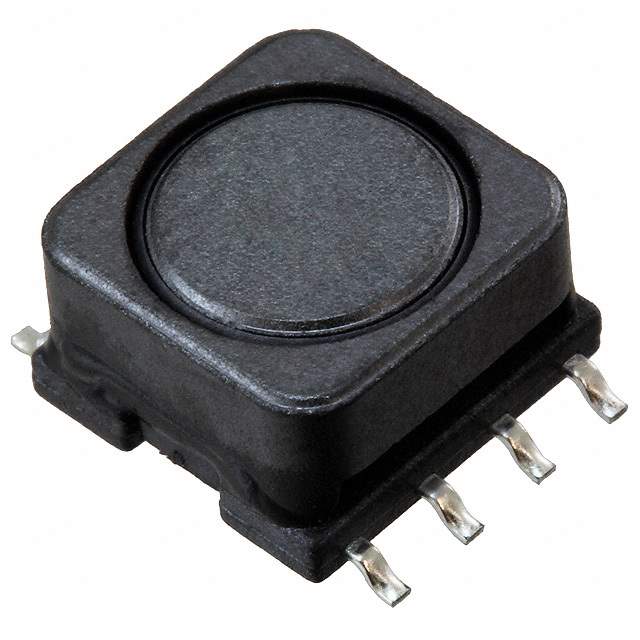

Same model may have multiple batches, images only for reference.

SRR0906-330ML

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRR0906-330ML
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SRR0906-330ML Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRR0906
Package	Tape & Reel (TR)
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	33 µH
Tolerance	±20%
Current Rating (Amps)	1.2 A
Current - Saturation (Isat)	1.6A
Shielding	Shielded
DC Resistance (DCR)	150mOhm Max
Q @ Freq	35 @ 2.52MHz
Frequency - Self Resonant	15MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	1 kHz
Mounting	SMD (SMT)
Package / Case	8-SMD, Gull Wing
Dimension	0.394" L x 0.374" W (10.00mm x 9.50mm)
Height - Seated (Max)	0.248" (6.30mm)
Base Product Number	SRR0906
Standard Package	600
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1273648-SRR0906-330ML
Ultra Librarian 3D Model	Ultra Librarian SRR0906-330ML CAD Model

Alternative Products

Description

The SRR0906-330ML is a drum core, wirewound inductor from Bourns Inc. that comes in a tape and reel package.

Shielded: Yes
Inductance: 33 µH
Tolerance: ±20%
Height (Seated): 0.248 inches (6.30mm)
Standard Package: 600
Core Material: Ferrite
Q @ Freq: 35 @ 2.52MHz
Frequency Self-Resonant: 15MHz
DC Resistance (DCR): 150mOhm Max
Current Rating (Amps): 1.2A
Temperature Range: -40°C to 125°C
Dimension: 0.394 inches L x 0.374 inches W (10.00mm x 9.50mm)
ECCN: EAR99
REACH: Unaffected
