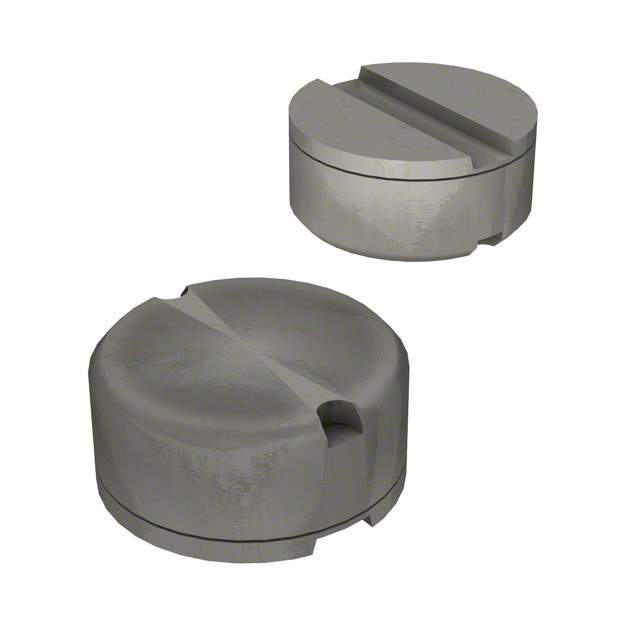

SRR0905-470Y Real Image
Same model may have multiple batches, images only for reference.

SRR0905-470Y

Part No SRR0905-470Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR0905-470Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR0905
Package Tape & Reel (TR),Cut Tape (CT)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 47 µH
Tolerance ±15%
Current Rating (Amps) 1 A
Shielding Shielded
DC Resistance (DCR) 140mOhm Max
Q @ Freq 27 @ 2.52MHz
Frequency - Self Resonant 11MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.390" Dia (9.90mm)
Height - Seated (Max) 0.189" (4.80mm)
Base Product Number SRR0905
Other Names SRR0905-470YCT,SRR0905470Y,-SRR0905-470Y,SRR0905-470Y,-SRR0905-470YTR,-SRR0905-470Y,-SRR0905-470YCT,SRR0905-470YTR
Standard Package 800
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273672-SRR0905-470Y
Ultra Librarian 3D Model Ultra Librarian SRR0905-470Y CAD Model

Description

Bourns Inc. offers a high-quality inductor with the part number 1273672-SRR0905-470Y.

  • Type: Drum core, wirewound
  • Shielded: Yes
  • Core Material: Ferrite
  • Tolerance: ±15%
  • Inductance: 47 μH
  • Dimensions: 0.390" Dia (9.90mm)
  • Height Seated (max): 0.189" (4.80mm)
  • Frequency-Self Resonant: 11MHz
  • Q@Freq: 27 @ 2.52MHz
  • Maximum DC Resistance (DCR): 140mOhm Max
  • Current Rating (Amps): 1A
  • Mounting: SMD (SMT)
  • MSL Level: 1 (Unlimited)
