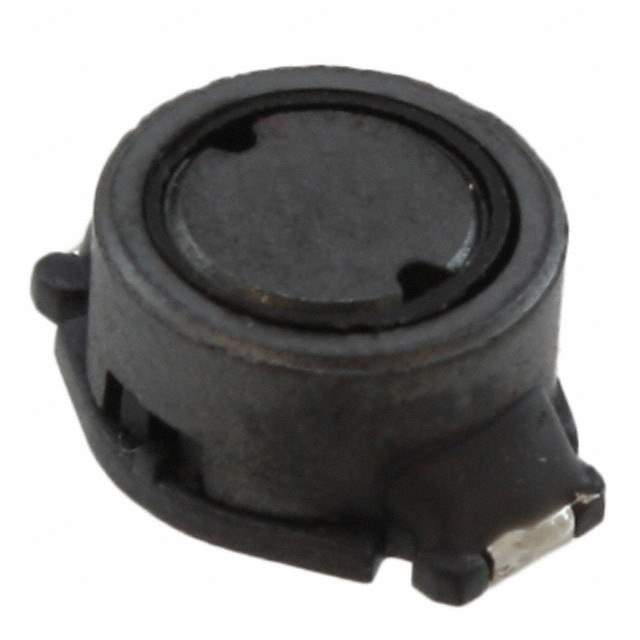

SRR0805-330Y Real Image
Same model may have multiple batches, images only for reference.

SRR0805-330Y

Part No SRR0805-330Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR0805-330Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR0805
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 33 µH
Tolerance ±15%
Current Rating (Amps) 920 mA
Current - Saturation (Isat) 1.2A
Shielding Shielded
DC Resistance (DCR) 240mOhm Max
Q @ Freq 40 @ 2.52MHz
Frequency - Self Resonant 13.5MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.413" L x 0.315" W (10.50mm x 8.00mm)
Height - Seated (Max) 0.185" (4.70mm)
Base Product Number SRR0805
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273687-SRR0805-330Y
Ultra Librarian 3D Model Ultra Librarian SRR0805-330Y CAD Model

Description

The Bourns Inc. SRR0805 series is a fixed inductor with an inductance of 33 μH.

  • Tolerance: ±15%
  • DC Resistance: 240mOhm Max
  • Type: shielded drum core, wirewound
  • Mounting: SMD (SMT)
  • Q @ Freq: 40 @ 2.52MHz
  • Frequency of Self-Resonant: 13.5MHz
  • Current Rating: 920mA
  • Temperature Range: -40°C to 125°C
  • Package: nonstandard
  • Height: 0.185" (4.70mm)
  • Standard Package: 1,000
