SRP7028A-1R8M

Name: SRP7028A-1R8M
Brand: Bourns Inc.
SKU: 1273813
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRP7028A-1R8M
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SRP7028A-1R8M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRP7028A
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Carbonyl Powder
Inductance	1.8 µH
Tolerance	±20%
Current Rating (Amps)	8.5 A
Current - Saturation (Isat)	16A
Shielding	Shielded
DC Resistance (DCR)	17mOhm Max
Q @ Freq	20 @ 100kHz
Frequency - Self Resonant	36MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 150°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.287" L x 0.260" W (7.30mm x 6.60mm)
Height - Seated (Max)	0.118" (3.00mm)
Base Product Number	SRP7028A
Other Names	SRP7028A-1R8MDKR,SRP7028A-1R8MTR,SRP7028A-1R8MCT
Standard Package	1,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1273813-SRP7028A-1R8M
Ultra Librarian 3D Model	Ultra Librarian SRP7028A-1R8M CAD Model

Alternative Products

Description

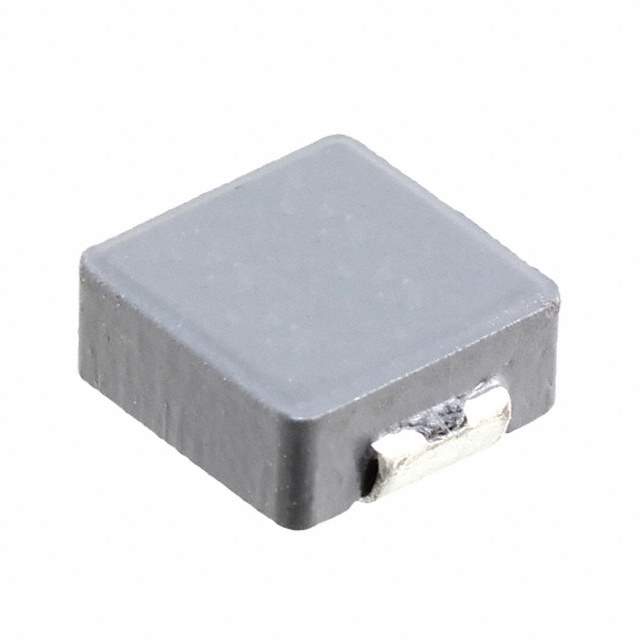

The SRP7028A-1R8M inductor is a drum core wirewound type with a shielding feature.

Inductance: 1.8µH
Tolerance: ±20%
DC Resistance: 17mOhm Max
Current Rating: 8.5A
Q @ Freq: 20 @ 100kHz
Frequency: Self-Resonant of 36MHz
Core Material: Carbonyl powder
Temperature Range: -40°C to 150°C
Dimension: 0.287" L x 0.260" W
Height: 0.118" (3.00mm)
AEC-Q200 Rated: Yes
Package: Non-standard
