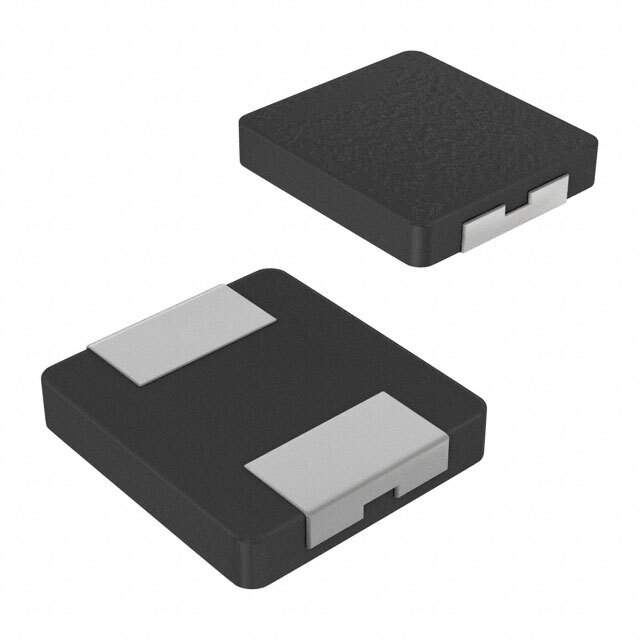

Same model may have multiple batches, images only for reference.

SRP4012TA-1R5M

Name: SRP4012TA-1R5M
Brand: Bourns Inc.
SKU: 1273938
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRP4012TA-1R5M
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SRP4012TA-1R5M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRP4012TA
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Carbonyl Powder
Inductance	1.5 µH
Tolerance	±20%
Current Rating (Amps)	3 A
Current - Saturation (Isat)	4A
Shielding	Shielded
DC Resistance (DCR)	56mOhm Max
Q @ Freq	10 @ 100kHz
Frequency - Self Resonant	62MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 150°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	2-SMD
Supplier Device Package	2-SMD
Dimension	0.175" L x 0.160" W (4.45mm x 4.06mm)
Height - Seated (Max)	0.047" (1.20mm)
Base Product Number	SRP4012TA
Other Names	SRP4012TA-1R5MDKR,SRP4012TA-1R5MTR,SRP4012TA-1R5MCT
Standard Package	4,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1273938-SRP4012TA-1R5M
Ultra Librarian 3D Model	Ultra Librarian SRP4012TA-1R5M CAD Model

Alternative Products

Description

The Bourns Inc. SRP4012TA series inductor is a drum core, wirewound type component.

Shielding: Shielded
Inductance: 1.5 µH
Tolerance: ±20%
Package: tape & reel
Standard Package: 4,000
Material Core: carbonyl powder
Q @ Freq: 10 @ 100kHz
Frequency - Self Resonant: 62MHz
DC Resistance (DCR): 56mOhm Max
Temperature Range: -40°C ~ 150°C
Dimension: 0.175" L x 0.160" W (4.45mm x 4.06mm)
Current Rating (amps): 3 A
Inductance Frequency - Test: 100 kHz
