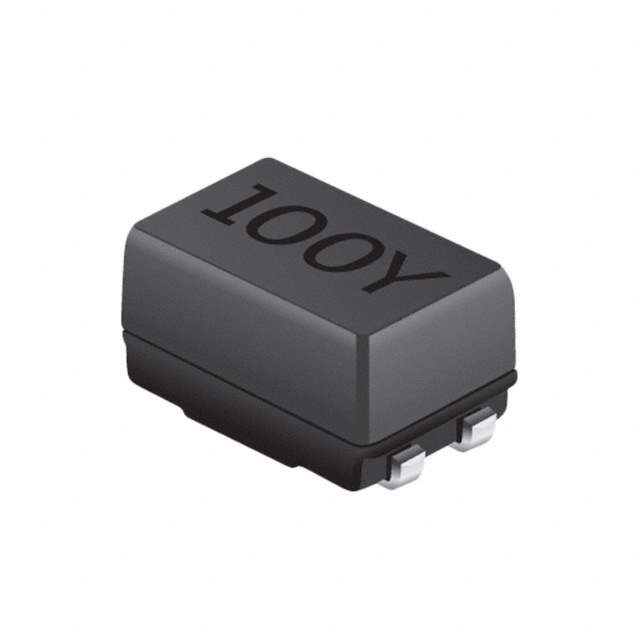

SRF0905A-501Y Real Image
Same model may have multiple batches, images only for reference.

SRF0905A-501Y

Part No SRF0905A-501Y
Manufacturer Bourns Inc.
Catalog Common Mode Chokes
Description CMC 500UH 1A 2LN SMD AEC-Q200 / 500 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 1 kOhms @ 1 MHz 1A DCR 150mOhm
Datasheet
SRF0905A-501Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Manufacturer Bourns Inc.
Packaging Reel - TR
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 1 kOhms @ 1 MHz
Inductance @ Frequency 500 µH @ 100 kHz
Current Rating (Max) 1A
DC Resistance (DCR) (Max) 150mOhm
Voltage Rating - DC 80V
Temperature Range - Operating -40°C ~ 105°C
Ratings AEC-Q200
Mounting Surface Mount
Size / Dimension 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max) 0.248" (6.30mm)
Case / Package Horizontal, 4 PC Pad
Base Product Number SRF0905A
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number SRF0905A-501YDKR,SRF0905A-501YCT,SRF0905A-501YTR
Standard Package 1,000
Win Source Part Number 1328204-SRF0905A-501Y
Ultra Librarian 3D Model Ultra Librarian SRF0905A-501Y CAD Model

Description

The SRF0905A-501Y is a common mode choke from Bourns Inc.

  • Manufacturer: Bourns Inc.
  • Product Name: SRF0905A-501Y
  • Function: Signal Line Filtering
  • Rated Voltage: 80V DC
  • Capacitance: 1 kOhms @ 1 MHz
  • Inductance: 500 µH @ 100 kHz
  • Maximum DC Resistance: 150mOhm
  • Current Rating: 1A
  • AEC-Q200 Rated: Yes
  • Temperature Range: -40°C to 105°C
  • Package/Case: Horizontal, 4 PC pad
  • Mounting: Surface Mount
  • Dimension: 0.362" L x 0.236" W (9.20mm x 6.00mm)
  • Category: Filters
