Same model may have multiple batches, images only for reference.

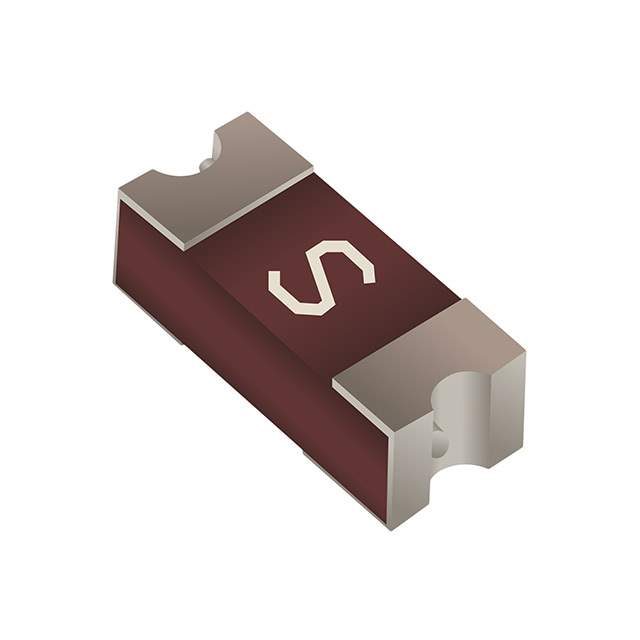

SF-2410FP315W-2 Real Image
Same model may have multiple batches, images only for reference.

SF-2410FP315W-2

Part No SF-2410FP315W-2
Manufacturer Bourns Inc.
Catalog Fuses
Datasheet
SF-2410FP315W-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bourns Inc.
Series SinglFuse™ SF-2410FPxxxW
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 3.15 A
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Response Time Fast Blow
Package / Case 2410 (6125 Metric)
Breaking Capacity @ Rated Voltage 50A
Melting I2t 2.2
Approval Agency UL
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.240" L x 0.098" W x 0.085" H (6.10mm x 2.49mm x 2.16mm)
DC Cold Resistance 0.0232 Ohms
Base Product Number SF-2410
Other Names SF-2410FP315W-2TR,SF-2410FP315W-2CT,SF-2410FP315W-2DKR
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1301988-SF-2410FP315W-2
Ultra Librarian 3D Model Ultra Librarian SF-2410FP315W-2 CAD Model

Description

The SinglFuse™ SF-2410FPxxxW is a fast-acting fuse designed for circuit protection.

  • Voltage Rating: 125 V AC and DC
  • Breaking Capacity: 50A
  • Melting I2t: 2.2
  • DC Cold Resistance: 0.0232 Ohms
  • Package Size: 2410 (6125 Metric)
  • Mounting: SMD (SMT)
  • Temperature Range: -55°C ~ 125°C
  • Standard Package: 2,000
  • Package: Tape and Reel
  • Manufacturer: Bourns Inc.
  • Approval: UL
