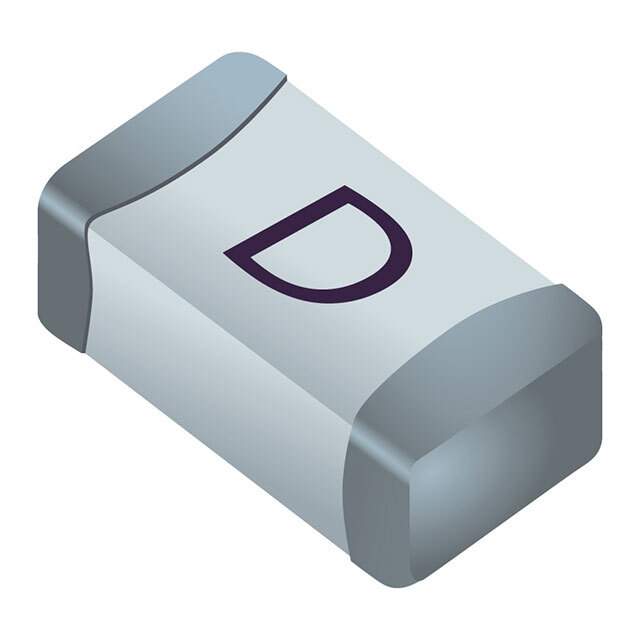

Same model may have multiple batches, images only for reference.

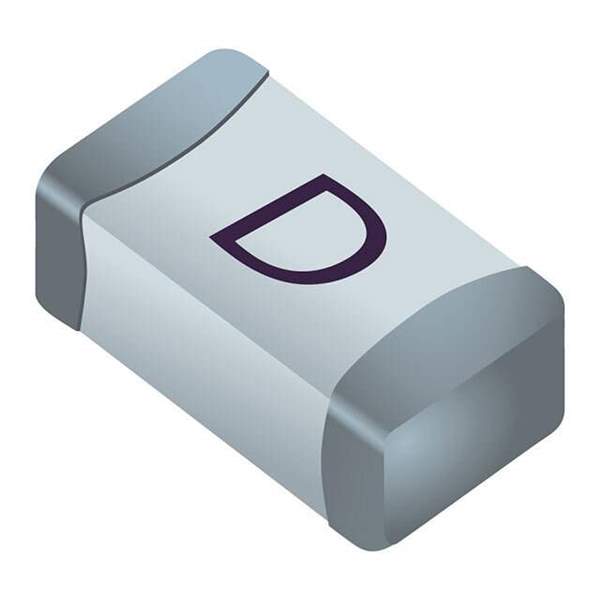

SF-1206S700M-2 Real Image
Same model may have multiple batches, images only for reference.

SF-1206S700M-2

Part No SF-1206S700M-2
Manufacturer Bourns Inc.
Catalog Fuses
Datasheet
SF-1206S700M-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bourns Inc.
Series SinglFuse™ SF-1206SxxxM
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 7 A
Voltage Rating - DC 32 V
Response Time Slow Blow
Package / Case 1206 (3216 Metric)
Breaking Capacity @ Rated Voltage 45A
Melting I2t 1.6
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.126" L x 0.063" W x 0.033" H (3.20mm x 1.60mm x 0.85mm)
DC Cold Resistance 0.011 Ohms
Base Product Number SF-1206
Other Names SF-1206S700M-2DKR,SF-1206S700M-2TR,SF-1206S700M-2CT
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1302041-SF-1206S700M-2
Ultra Librarian 3D Model Ultra Librarian SF-1206S700M-2 CAD Model

Description

The SF-1206S700M-2 is a slow blow board mount fuse from Bourns Inc. The product is a part of SinglFuse™ SF-1206SxxxM series. It is a surface mount device with a 1206 (3216 Metric) package/case.

  • Package/Case: 1206 (3216 Metric)
  • Voltage Rating: 32 V DC
  • Current Rating: 7 A
  • Response Time: Slow response time
  • Breaking Capacity: 45A @ rated voltage
  • RoHS: RoHS compliant
  • REACH: REACH unaffected
