Same model may have multiple batches, images only for reference.

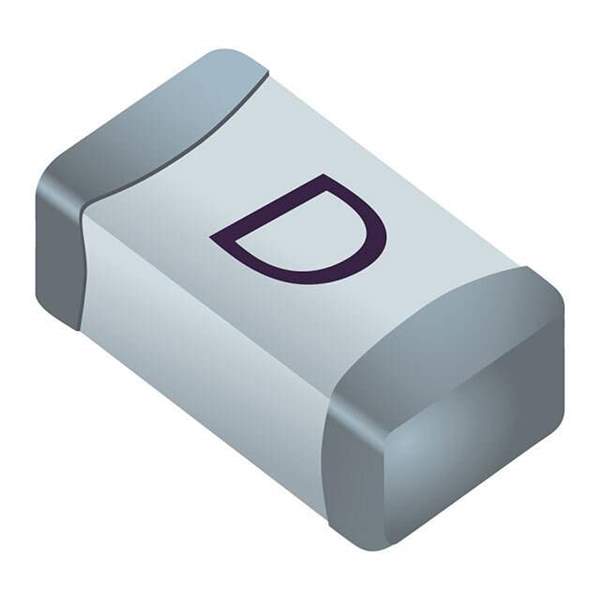

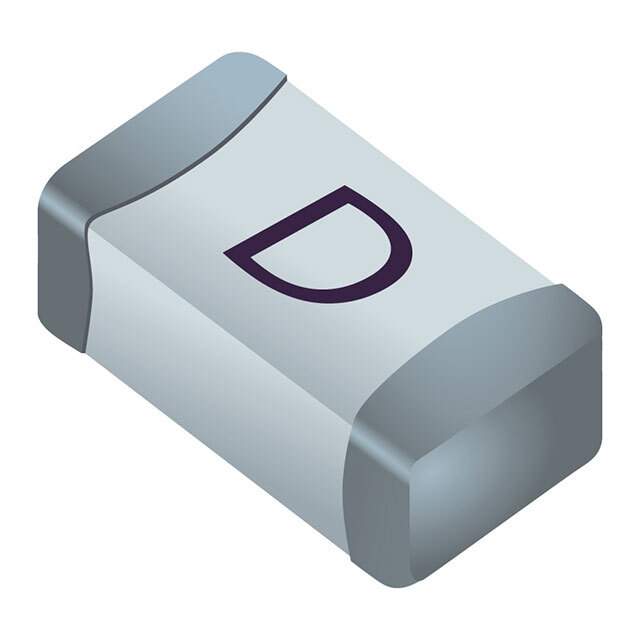

SF-1206S200M-2 Real Image
Same model may have multiple batches, images only for reference.

SF-1206S200M-2

Part No SF-1206S200M-2
Manufacturer Bourns Inc.
Catalog Fuses
Datasheet
SF-1206S200M-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bourns Inc.
Series SinglFuse™ SF-1206SxxxM
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 2 A
Voltage Rating - DC 63 V
Response Time Slow Blow
Package / Case 1206 (3216 Metric)
Breaking Capacity @ Rated Voltage 50A
Melting I2t 0.075
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.126" L x 0.063" W x 0.033" H (3.20mm x 1.60mm x 0.85mm)
DC Cold Resistance 0.05 Ohms
Base Product Number SF-1206
Other Names SF-1206S200M-2TR,SF-1206S200M-2CT,SF-1206S200M-2DKR
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1302046-SF-1206S200M-2
Ultra Librarian 3D Model Ultra Librarian SF-1206S200M-2 CAD Model

Description

The Bourns Inc. 1302046-SF-1206S200M-2 is a fuse.

  • Voltage Rating: 63V
  • Current Rating: 2A
  • Response Time: Slow Blow
  • Breaking Capacity: 50A @ Rated Voltage
  • DC Cold Resistance: 0.05 ohms
  • Melting I2t: 0.075
  • Operating Temperature Range: -55°C to 125°C
  • Dimension (LxWxH): 0.126 inches (3.20mm) x 0.063 inches (1.60mm) x 0.033 inches (0.85mm)
