Same model may have multiple batches, images only for reference.

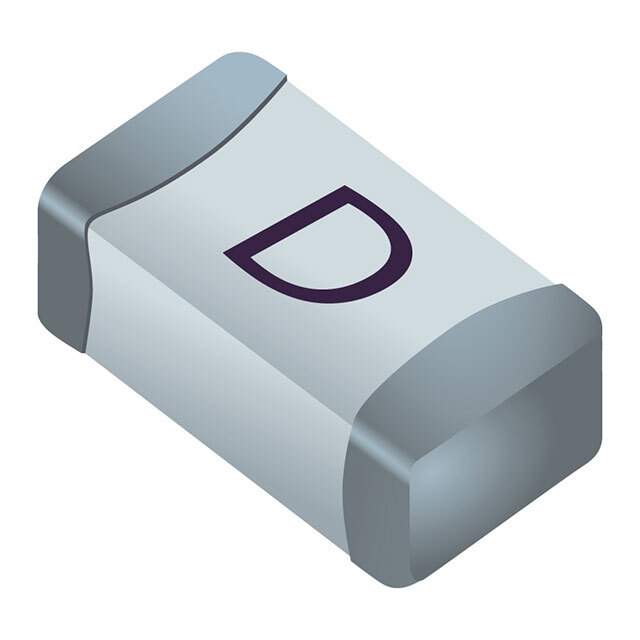

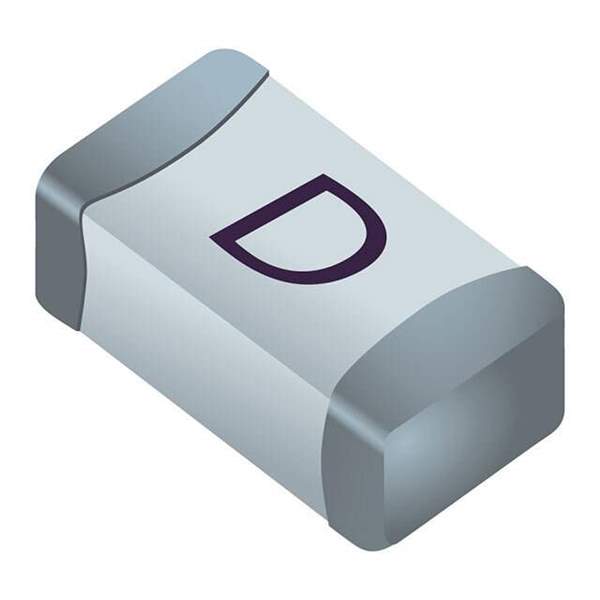

SF-1206S100M-2 Real Image
Same model may have multiple batches, images only for reference.

SF-1206S100M-2

Part No SF-1206S100M-2
Manufacturer Bourns Inc.
Catalog Fuses
Datasheet
SF-1206S100M-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bourns Inc.
Series SinglFuse™ SF-1206SxxxM
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 1 A
Voltage Rating - DC 63 V
Response Time Slow Blow
Package / Case 1206 (3216 Metric)
Breaking Capacity @ Rated Voltage 50A
Melting I2t 0.011
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.126" L x 0.063" W x 0.033" H (3.20mm x 1.60mm x 0.85mm)
DC Cold Resistance 0.22 Ohms
Base Product Number SF-1206
Other Names SF-1206S100M-2TR,SF-1206S100M-2DKR,SF-1206S100M-2CT
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1302048-SF-1206S100M-2
Ultra Librarian 3D Model Ultra Librarian SF-1206S100M-2 CAD Model

Description

The Bourns Inc. SinglFuse™ SF-1206SxxxM is a slow blow fuse with a breaking capacity of 50A and 1A current rating.

  • DC Cold Resistance: 0.22 ohms
  • Melting I2t: 0.011
  • Voltage Rating - DC: 63V
  • Response Time: Slow Blow
  • Dimension: 0.126" L x 0.063" W x 0.033" H (3.20mm x 1.60mm x 0.85mm)
  • Mounting Style: SMD (SMT)
  • Application: Fuses
  • Packaging: Tape and Reel
